The LM3001 Bluetooth® Industrial gateway is a powerful and versatile solution that allows a variety of Bluetooth devices to be connected to an Ethernet network.
The Gateway is a Class 1 device allowing it to maintain connections at long range, using the supplied antennas.
The LM3001 can be used in a wide range of applications including asset tracking, building automation and data collection. This makes it suitable for installation in a variety of locations such as warehouses, schools, offices, factories, airports and stadiums.

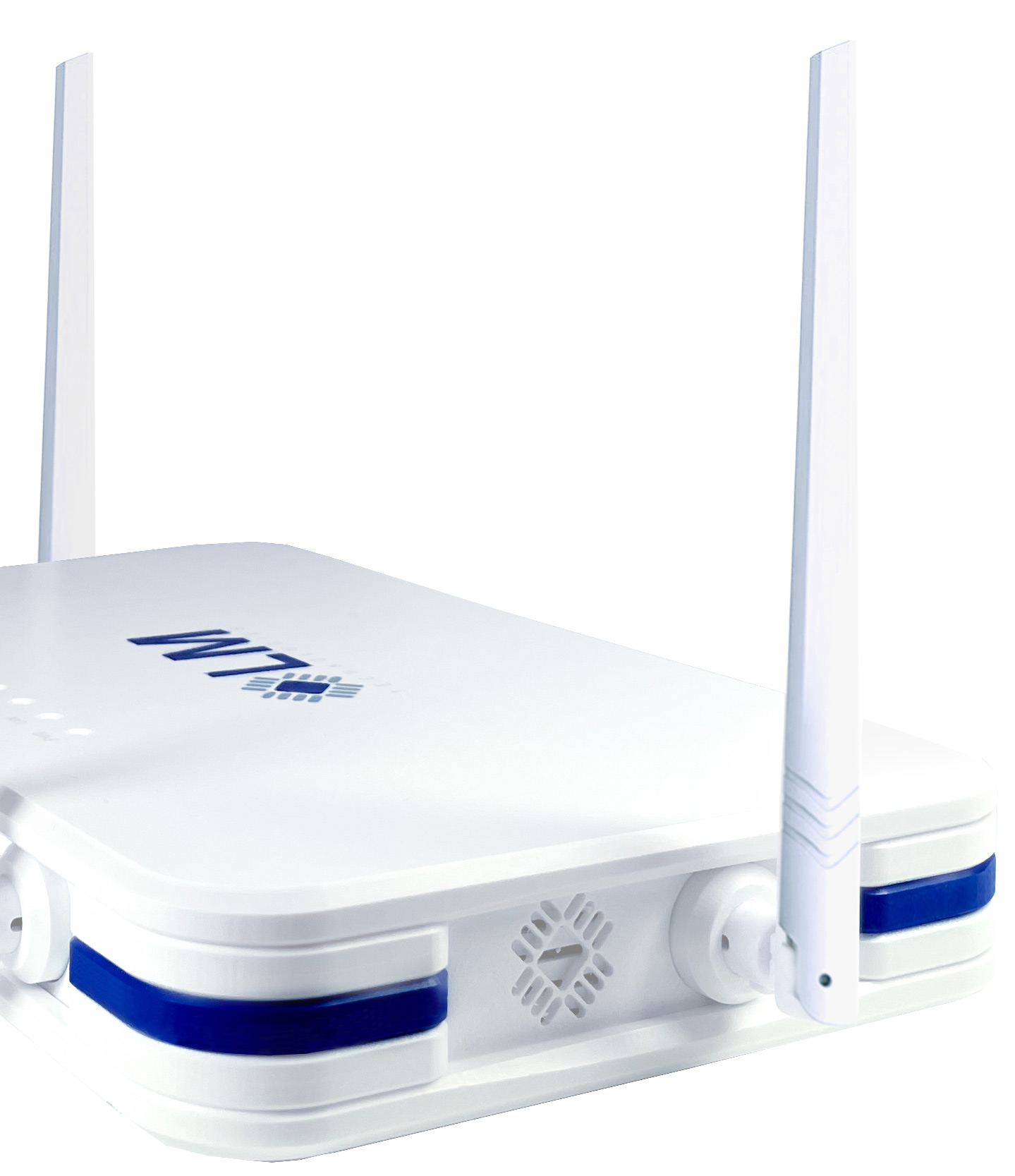

The LM3001 has quad Qualcomm modules combining Bluetooth® Low Energy (LE) and Classic radios using a dual mode Bluetooth 5.0 stack, plus a high-performance micro-processing unit and embedded Linux operating system. The Gateway has a selection of customisation options and can be ordered as pictured or in your own custom design and branding.
FEATURES
 |
Bluetooth® 5.0 specification |
|
|
AT Command configurable |
|
|
10M/100M adaptive network |
|
|
Bluetooth® security authentication |
|
|
Frequency range: ISM 2.400 - 2.483GHz |
|
|
Browser configuration page for easy setup |
|
|
Bluetooth® profiles: SPP, HID, LE GATT |
|
|
Internet protocols: TCP/IP, HTTP, FTP, ARP, DHCP, PPP |
APPLICATIONS
General Specifications
Wireless
| Bluetooth® Standard | 5.0 (Dual Mode) |
| Product Type | Gateway |
| Profiles | SPP, HID, GATT, LE |
Physical Characteristics
| Operating Temperature | -20°C to +65°C** |
| Dimensions (L x W x H) | 200mm x 131mm x 31mm** |
| Weight (With stock antennas) | 500g** |
| Certifications |
 |
| Compliance | RoHS, REACH and WEEE |
Hardware
| Chipset | Qualcomm |
| Antenna | 4 x External SMA Antennas |
| Microcontroller (MCU) | 400-MIPS High-Performance Processor |
| Interfaces | Ethernet |
| Power Supply | 12V |
| LED Indicators | Connection status |
RF Characteristics
| Tx Output Power (Average) | 8.31 dBm (Bluetooth® v2.0, v.2.1) and 7.63 dBm (Bluetooth® v5.0/v4.2) |
| Rx Sensitivity | -90 dBm (Bluetooth® v2.0, v.2.1) and -90 dBm (Bluetooth® v5.0/v4.2) |
| Data Rate | Up to 3Mbps |
| Frequency | 2.4 GHz to 2.480 GHz |
**Subject to change.
