Bluetooth® v4.0 Dual Mode Module – LM910

£100.00

Bluetooth® v4.0 Dual Mode Module – LM910 has a wide range of uses thanks to the array of profiles available with the Widcomm Bluetooth® stack, along with excellent compatibility with other OS stacks such as Linux’s BlueZ. Its exceptional performance will allow users to connect up to 110 mtrs via Bluetooth® v4.0, v2.0, v2.1 + EDR and low energy standards.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM910_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

  • Tech Spec

    Additional Information

    Wireless Standard
    • BT 4.0
    Backward Compatibility
    • Bluetooth 3.0
    • Bluetooth 2.1
    • Bluetooth 2.0
    Frequency

    2.4 GHz

    Module Type
    • Host Controller Interface (HCI)
    Interfaces
    • USB
    Antenna

    IPEX Receptical, PCB Antenna

    Tx Output Power
    • 10dBm (Bluetooth® v2.x)
    • 9dBm (Bluetooth® low energy)
    Rx Sensitivity
    • -85dBm (Bluetooth®)
    • -90dBm (Bluetooth® low energy)

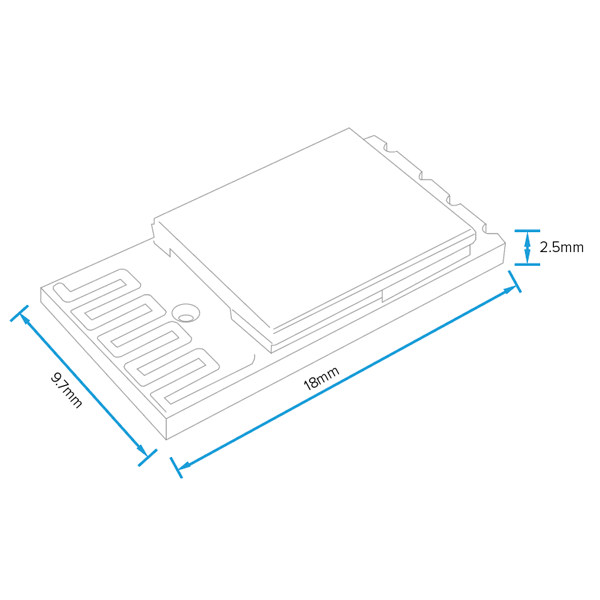

    Dimensions
    • 18mm x 9.7mm x 2.5mm
    Weight
    • 0.69g +/- 0.25g tolerance
    Operating Temperature
    • -20°C to +75°C
    Bluetooth Technology

    Bluetooth Classic, Bluetooth Low Energy (LE)

    Compatibility
    • Linux
    • Mac OSX
    • Windows 10
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • Bluetooth SIG - UK
    • CE-Europe-RED
    • FCC - United States
    • IC - Canada
  • Description

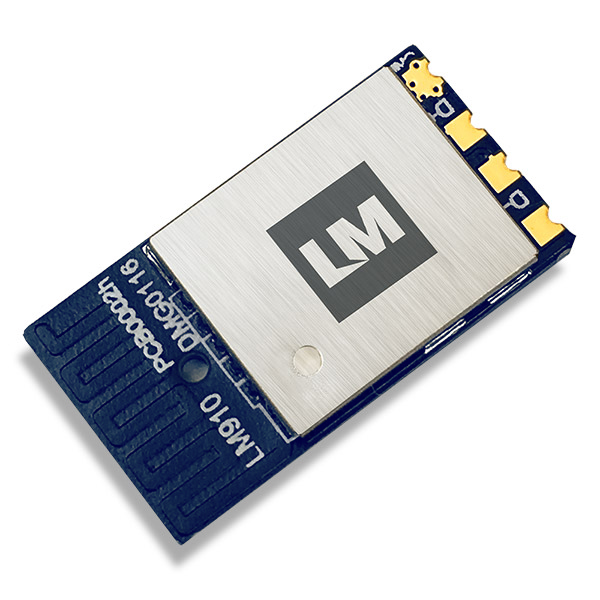

    The LM910 Bluetooth® v4.0 Dual Mode Module is a small, simple and highly compatible solution. A plug and play module, compatible with Linux, macOS and Windows XP to Windows 10 platforms. This allows your embedded system to wirelessly communicate with other nearby Bluetooth® and Bluetooth® low energy enabled devices (such as the iPhone and Android devices), providing a low energy connection and a high quality data stream. The LM910 has many possible uses (e.g. within a Beacon and a data logger), it's typically used in industries such as EPOS, M2M and automotive, making it ideal for developing voice and data applications. The module has a Host Controller Interface (HCI) for a simple connection via USB to a host computer or MCU. The LM910 is designed with a PCB antenna for a cost effective solution, providing a high antenna gain. It's SMT side and bottom pads allow for easy integration into your embedded system, simplifying the production and manufacturing phase.
  • Features

    • Plug and Play (OSX, Linux and Windows XP – 10 compatible)
    • Voice and data application support (including VoIP over Bluetooth®)
    • Stereo Audio supported
    • Beacon compatible

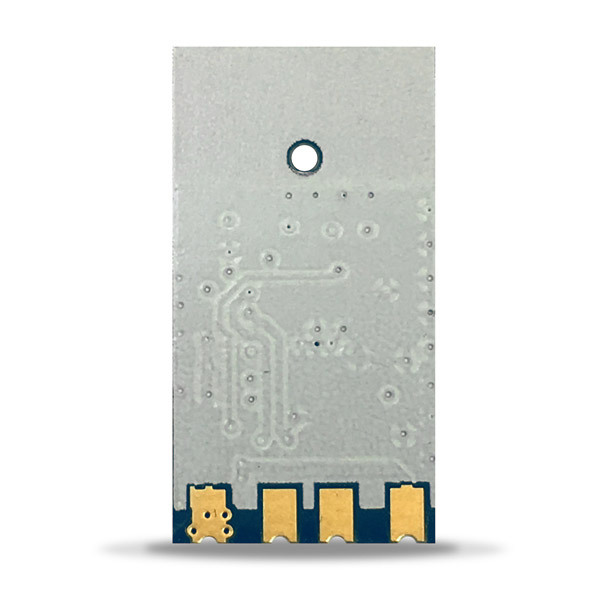

    • SMT Side and Bottom Pads for easy production

Case Studies

LM842 and LM843 Linux Mainline Support Announcement

  LM Technologies is pleased to announce that Wi-Fi mainline support is now available for the LM842 and LM843 product series starting from Linux Kernel 6.2. What is Mainline Support?…

Resources

Access all the information for our products - some documentation my require an account  to access.

Talk to us...

It’s what makes us stand out against our competitors, we are the experts, real people that can assist you – not just resellers.

Keep informed...

Alerts for EOL, PCN and products updates

Software

Please read before downloading

It should be unnecessary to install a Windows driver, since they are fetched automatically via Windows update. However, if you encounter any problems, the latest driver is available in the WIDCOMM package.

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Read above before downloading’ tags=”]

[/av_toggle]

[/av_toggle_container]

Certifications

Bluetooth SIG Certified [ Verify our SIG certification of LM910

OTHER DECLARATIONS

ECCN / CCATS

The LM910 Bluetooth® v4.0 Dual Mode Module is a small, simple and highly compatible solution. A plug and play module, compatible with Linux, macOS and Windows XP to Windows 10 platforms.

This allows your embedded system to wirelessly communicate with other nearby Bluetooth® and Bluetooth® low energy enabled devices (such as the iPhone and Android devices), providing a low energy connection and a high quality data stream.

The LM910 has many possible uses (e.g. within a Beacon and a data logger), it’s typically used in industries such as EPOS, M2M and automotive, making it ideal for developing voice and data applications.

The module has a Host Controller Interface (HCI) for a simple connection via USB to a host computer or MCU.

The LM910 is designed with a PCB antenna for a cost effective solution, providing a high antenna gain.

It’s SMT side and bottom pads allow for easy integration into your embedded system, simplifying the production and manufacturing phase.

Additional information

Wireless Standard
  • BT 4.0
Backward Compatibility
  • Bluetooth 3.0
  • Bluetooth 2.1
  • Bluetooth 2.0
Frequency

2.4 GHz

Module Type
  • Host Controller Interface (HCI)
Interfaces
  • USB
Antenna

IPEX Receptical, PCB Antenna

Tx Output Power
  • 10dBm (Bluetooth® v2.x)
  • 9dBm (Bluetooth® low energy)
Rx Sensitivity
  • -85dBm (Bluetooth®)
  • -90dBm (Bluetooth® low energy)
Dimensions
  • 18mm x 9.7mm x 2.5mm
Weight
  • 0.69g +/- 0.25g tolerance
Operating Temperature
  • -20°C to +75°C
Bluetooth Technology

Bluetooth Classic, Bluetooth Low Energy (LE)

Compatibility
  • Linux
  • Mac OSX
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Compliance
  • CCATS-ECCN
  • Reach
  • RoHS
  • WEEE
Certifications
  • Bluetooth SIG - UK
  • CE-Europe-RED
  • FCC - United States
  • IC - Canada

Documentation


PART NUMBER REVISION

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’LM910 Part Number Revision’ tags=”]

[/av_toggle]
[/av_toggle_container]


* For any other product documentation please Contact Us
