WiFi Module 150Mbps with IPEX Receptical – LM821

£100.00

WiFi SMT Module 150Mbps with IPEX Receptical – LM821 supports up to 150Mbps high-speed wireless network connections and designed to provide excellent performance with low power consumption.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM821_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’See EOL Notice’ link=’https://www.lm-technologies.comeol-end-life-product-notice/’ link_target=” size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’custom’ custom_bg=’#94051f’ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

  • Tech Spec

    Additional Information

    Wireless Standard
    • 802.11n
    Backward Compatibility
    • 802.11b
    • 802.11g
    Frequency

    2.4 GHz

    Module Type
    • Host Controller Interface (HCI)
    Interfaces
    • USB
    Antenna

    IPEX Receptical

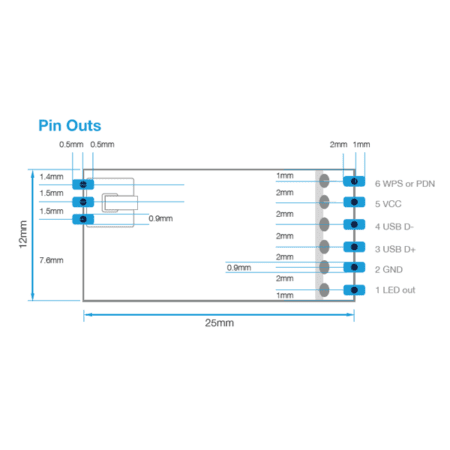

    Dimensions
    • 25.0mm x 12.0mm x 2.0mm
    Weight
    • 1.09g +/- 0.25g tolerance
    Operating Temperature
    • 0°C to +50°C
    Compatibility
    • Windows CE6
    • Windows CE7
    • Linux
    • Mac OSX
    • Windows 10
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • CE - Europe-RTTE
    • FCC - United States
  • Description

    • Operates in 2.4 GHz frequency bands
    • 1x1 MIMO technology improves effective throughput and range over existing 802.11 b/g products
    • Data rates: up to 150Mbps
    • 802.11e-compatible bursting and I standards
    • BPSK, QPSK, 16 QAM, 64 QAM modulation schemes
    • WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
    • Realtek RTL 8188CUS
    • IPEX Receptical (or IC Onboard Antenna (LM820))

    Factory options

    • DC power input 3.3V or 5V input
    • RF output by chip antenna (type-1), RF connector (type-2), RF pad on module (type-3), RF output on half-hole pin (type-4)
    • WPS or PDN control function on half-hole pin 6
    • Supports LED functions when choosing the WPS option
    • This WiFi 802.11n USB module fully supports compliance of the IEEE 802.11n, e and i standards.
    The LM821 is designed to be a highly competitive cost-effective module that offers superior performance, providing better power management applications over its nearest competitors.

    Antenna Option - IC Onboard Antenna

    This Module is also available with an onboard IC Antenna (See LM820 if you are interested in this option) Packaging
    • Tape and Reel: 1000 pieces per reel. Tray: 50 pieces per tray.
  • Features

    • Operates in 2.4 GHz frequency bands
    • 1×1 MIMO (Multiple Input / Multiple Output) technology improves effective throughput and range over existing 802.11 b/g products
    • Data rates: up to 150Mbps
    • 802.11e-compatible bursting and I standards
    • BPSK, QPSK, 16 QAM, 64 QAM modulation schemes
    • WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
    • Realtek RTL8188CUS IC U.FL Receptical
    • DC power input 3.3V or 5V input
    • RF output by chip antenna(type-1)
    • RF connector(type-2)
    • RF pad on module(type-3)
    • RF output on half-hole pin(type-4)
    • WPS or PDN control function on half-hole pin 6
    • Supports LED functions when choosing the WPS option

Case Studies

Lead Times Update 22 Sep 2022

For new orders, due to extended lead times from our chip vendors/suppliers, we are experiencing delays for key components used in LM products which are impacting the normal production cycle.…

Resources

Access all the information for our products - some documentation my require an account  to access.

Talk to us...

It’s what makes us stand out against our competitors, we are the experts, real people that can assist you – not just resellers.

Keep informed...

Alerts for EOL, PCN and products updates

Software

LM821 RTL8188CUS macOS Tiger Driver (10.4)

LM821_SOFT_RTL8188CUS_MACOS10.4.zip

LM821 RTL8188CUS macOS Leopard Driver (10.5)

LM821_SOFT_RTL8188CUS_MACOS10.5.zip

LM821 RTL8188CUS macOS Snow Leopard Driver (10.6)

LM821_SOFT_RTL8188CUS_MACOS10.6.zip

LM821 RTL8188CUS macOS Lion Driver (10.7)

LM821_SOFT_RTL8188CUS_MACOS10.7.zip

LM821 RTL8188CUS macOS Mountain Lion Driver (10.8)

LM821_SOFT_RTL8188CUS_MACOS10.8.zip

LM821 RTL8188CUS macOS  Snow Leopard to Sierra Drivers (10.6-10.12)

LM821_SOFT_RTL8188CUS_MACOS10.6_TO_MACOS10.12.zip



LM821 RTL8188CUS Windows CE7 and Windows CE7 Driver

LM821_SOFT_RTL8188CUS_WINCE6_WINCE7.zip

Certifications

Not for Sale in the EU.
For European sales please see our LM823

OTHER DECLARATIONS

ECCN / CCATS

  • Operates in 2.4 GHz frequency bands
  • 1×1 MIMO technology improves effective throughput and range over existing 802.11 b/g products
  • Data rates: up to 150Mbps
  • 802.11e-compatible bursting and I standards
  • BPSK, QPSK, 16 QAM, 64 QAM modulation schemes
  • WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
  • Realtek RTL 8188CUS
  • IPEX Receptical (or IC Onboard Antenna (LM820))

Factory options

  • DC power input 3.3V or 5V input
  • RF output by chip antenna (type-1), RF connector (type-2), RF pad on module (type-3), RF output on half-hole pin (type-4)
  • WPS or PDN control function on half-hole pin 6
  • Supports LED functions when choosing the WPS option
  • This WiFi 802.11n USB module fully supports compliance of the IEEE 802.11n, e and i standards.

The LM821 is designed to be a highly competitive cost-effective module that offers superior performance, providing better power management applications over its nearest competitors.

Antenna Option – IC Onboard Antenna

This Module is also available with an onboard IC Antenna (See LM820 if you are interested in this option)

Packaging

  • Tape and Reel: 1000 pieces per reel.
    Tray: 50 pieces per tray.

Additional information

Wireless Standard
  • 802.11n
Backward Compatibility
  • 802.11b
  • 802.11g
Frequency

2.4 GHz

Module Type
  • Host Controller Interface (HCI)
Interfaces
  • USB
Antenna

IPEX Receptical

Dimensions
  • 25.0mm x 12.0mm x 2.0mm
Weight
  • 1.09g +/- 0.25g tolerance
Operating Temperature
  • 0°C to +50°C
Compatibility
  • Windows CE6
  • Windows CE7
  • Linux
  • Mac OSX
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Compliance
  • CCATS-ECCN
  • Reach
  • RoHS
  • WEEE
Certifications
  • CE - Europe-RTTE
  • FCC - United States
