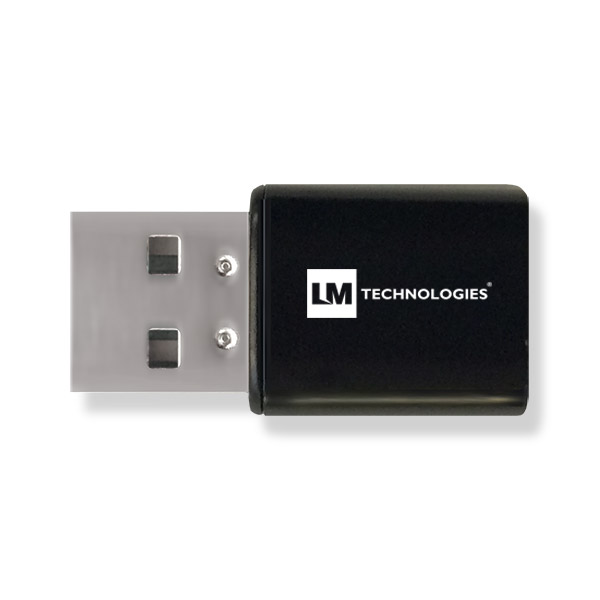

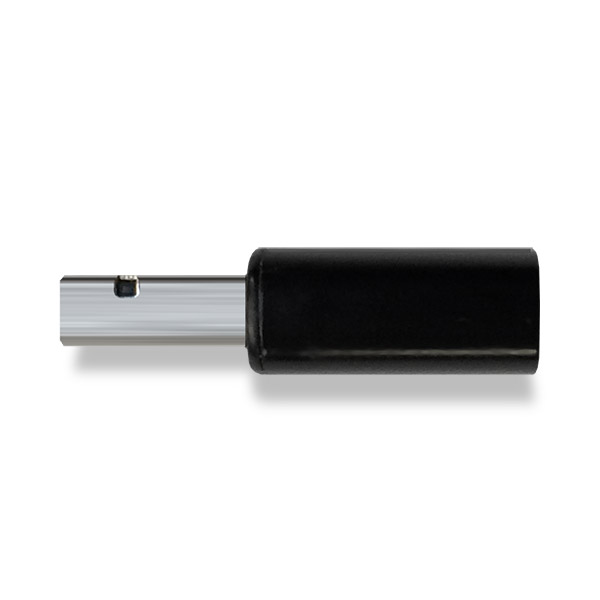

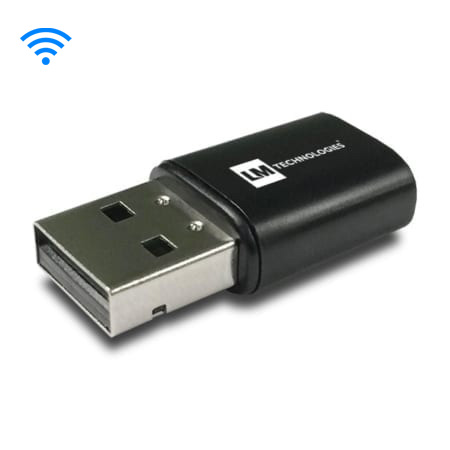

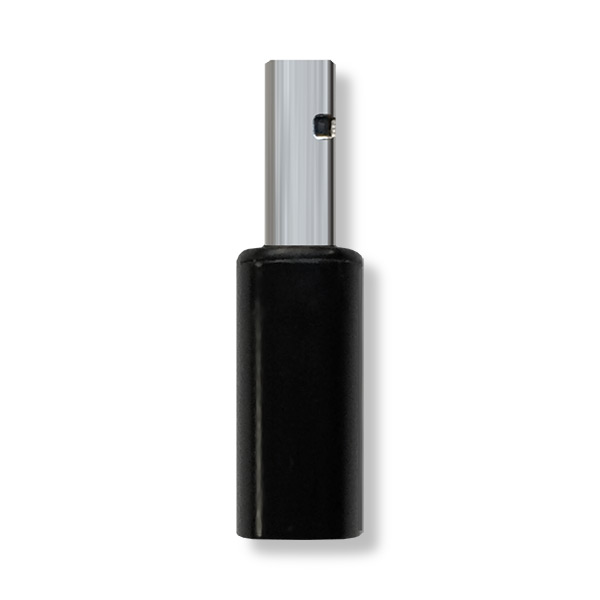

WiFi USB Adapter 433Mbps – LM808

£100.00

WiFi USB Adapter 433Mbps – LM808 supports All IEEE Standards IEEE 802.11 ac, a, b, g, n, d, e, h, i & Backward compatible with 802.11 a, b, g devices while operating over 802.11n

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM808_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

Add to wishlist

  • Tech Spec

    Additional Information

    Wireless Standard
    • 802.11ac
    Backward Compatibility
    • 802.11a
    • 802.11b
    • 802.11g
    • 802.11n
    Frequency

    2.4 GHz and 5 GHz
    Adapter Type

    Host Controller Interface (HCI)
    Interfaces
    • USB
    Antenna

    IC Antenna

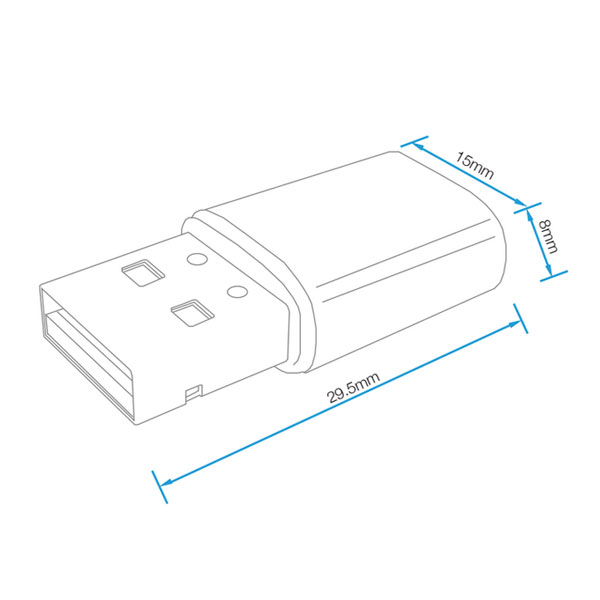

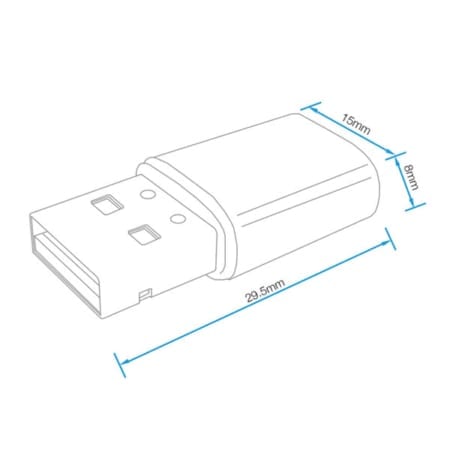

    Dimensions
    • 29.5mm x 15.0mm x 8.0mm
    Operating Temperature
    • 0°C to +70°C
    Compatibility
    • Linux
    • Mac OSX
    • Windows 10
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Weight
    • 3.33g +/- 0.25g tolerance (25.70g in retail pack)
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • Paraguay - Conatel
    • URCA - Bahamas
    • Anatel - Brazil
    • CE-Europe-RED
    • CITC - Saudi Arabia
    • DWLFM - Bahrain
    • EAC - Russia
    • Enacom - Argentina
    • FCC - United States
    • IC - Canada
    • ICASA - South Africa
    • IDMA - Singapore
    • KCC - Korea
    • MoC - India
    • MOC - Israel
    • Morocco
    • NBTC - Thailand
    • NCC - Taiwan
    • RCM - Australia - New Zealand
    • SRRC - China
    • SUTEL - Costa Rica
    • Telec - Japan

  • Description

    Maximum Data Rates at
    •  72.2 Mbps Using 20MHz bandwidth.
    • 150 Mbps Using 40MHz bandwidth.
    • 433.3Mbps Using 80MHz bandwidth.
    • Operates over ISM bands (2.4GHz and 5GHz) 20MHz / 40MHz / 80MHz Bandwidth Transmission.
    • Modulation OFDM with BPSK, QPSK, 16QAM, 64QAM and 256QAM Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6.
    • WiFi Direct and support for WiFi P2P PAN network.

    WiFi USB Adapter 433Mbps - LM808

    Uses a USB 2.0 interface in order to communicate with host. It uses a Realtek IC that fully supports all of the 808.11 Bands IEEE 802.11 ac Draft 2.0 and 802.11 a/b/g/n specifications and is backward compatible while using 802.11n standard. The LM808 is for users requiring a high-performance wireless client. Also supporting WiFi Direct feature that can easily build a WiFi P2P PAN network. The WiFi USB Adapter supports the Orthogonal Frequency Division Multiplexing (OFDM) with one transmits and one receive paths (1T1R). Features include support for both 20MHz, 40MHz and 80MHz channel bandwidth, and combined with BPSK, QPSK, 16QAM, 64QAM and 256QAM modulation of the individual subcarriers and offers a compatible coding rate of 1/2, 2/3, 3/4, and 5/6, and provides up to 433.3 Mbps over IEEE 802.11ac while using 80MHz bandwidth.

  • Features

    • Supports All IEEE Standards
    • IEEE 802.11ac/a/b/g/n/d/e/h/i
    • Backward compatible with 802.11a/b/g devices while operating over 802.11n
    • Maximum Data Rates at 72.2 Mbps Using 20MHz bandwidth, 150Mbps Using 40MHz bandwidth, 433.3Mbps Using 80MHz bandwidth
    • Operates over ISM bands (2.4GHz and 5GHz)
    • 20MHz / 40MHz / 80MHz Bandwidth Transmission Modulation
    • OFDM with BPSK, QPSK, 16QAM, 64QAM and 256QAM
    • Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6
    • WiFi Direct and support for WiFi P2P PAN network

Case Studies

Lead Times Update 22 Sep 2022

For new orders, due to extended lead times from our chip vendors/suppliers, we are experiencing delays for key components used in LM products which are impacting the normal production cycle.…

Read more

Resources

Access all the information for our products - some documentation my require an account  to access.

Certification >

Datasheets >

User Guides >

Drivers >

Images >

Talk to us...

It’s what makes us stand out against our competitors, we are the experts, real people that can assist you – not just resellers.

BOOK AN APPOINTMENT

Keep informed...

Sign up for alerts for EOL, PCN and products updates

ALERTS

Drivers

LM808 Windows Driver 10, 8, 7, Vista, XP

LM808_WINDOWS_DRIVERS.zip

LM808 Linux Drivers

LM808_LINUX_DRIVER_RTL8811AU_V5.3.4.1.zip

LM808_LINUX_DRIVER_RTL8811AU_V5.2.6.1.zip

LM808_LINUX_DRIVER_RTL8811_V4.3.19.4_17413.zip

LM808 Android Driver 4.X – 7.0 (v4.2, 4.4, 5.x, 6.x, 7.0)

LM808_ANDROID_DRIVER_4.X-7.0_RTL8811AU.zip

LM808 MacOS El Capitan Driver 10.11

(Tested with OSX 10.11.3) (New Menu Bar Version)

LM808_OSX10.11_WIFI_DRIVER_WITH_MENUBAR_FEB2016.zip

LM808 MacOS Yosemite Driver 10.10

LM808_OSX10.10_WIFI_DRIVER_JUL2015.zip

LM808 MacOS Mavericks Driver 10.9

LM808_OSX10.9_WIFI_DRIVER_JUL2015.zip

LM808 MacOS Mountain Lion Driver 10.8

LM808_OSX10.8_WIFI_DRIVER_JUL2015.zip

LM808 MacOS Lion Driver 10.7

LM808_OSX10.7_WIFI_DRIVER_JUL2015.zip

LM808 MacOS Snow Leopard Driver 10.6

(Tested with OSX 10.6) (New Menu Bar Version)

LM808_OSX10.6_WIFI_DRIVER_WITH_MENUBAR_FEB2016.zip



Certifications

OTHER DECLARATIONS

ECCN / CCATS

Maximum Data Rates at

  •  72.2 Mbps Using 20MHz bandwidth.
  • 150 Mbps Using 40MHz bandwidth.
  • 433.3Mbps Using 80MHz bandwidth.
  • Operates over ISM bands (2.4GHz and 5GHz) 20MHz / 40MHz / 80MHz Bandwidth Transmission.
  • Modulation OFDM with BPSK, QPSK, 16QAM, 64QAM and 256QAM Convolutional Coding Rate: 1/2, 2/3, 3/4, and 5/6.
  • WiFi Direct and support for WiFi P2P PAN network.

WiFi USB Adapter 433Mbps – LM808

Uses a USB 2.0 interface in order to communicate with host. It uses a Realtek IC that fully supports all of the 808.11 Bands IEEE 802.11 ac Draft 2.0 and 802.11 a/b/g/n specifications and is backward compatible while using 802.11n standard.

The LM808 is for users requiring a high-performance wireless client. Also supporting WiFi Direct feature that can easily build a WiFi P2P PAN network.

The WiFi USB Adapter supports the Orthogonal Frequency Division Multiplexing (OFDM) with one transmits and one receive paths (1T1R).

Features include support for both 20MHz, 40MHz and 80MHz channel bandwidth, and combined with BPSK, QPSK, 16QAM, 64QAM and 256QAM modulation of the individual subcarriers and offers a compatible coding rate of 1/2, 2/3, 3/4, and 5/6, and provides up to 433.3 Mbps over IEEE 802.11ac while using 80MHz bandwidth.

Additional information

Wireless Standard
  • 802.11ac
Backward Compatibility
  • 802.11a
  • 802.11b
  • 802.11g
  • 802.11n
Frequency

2.4 GHz and 5 GHz
Adapter Type

Host Controller Interface (HCI)
Interfaces
  • USB
Antenna

IC Antenna
Dimensions
  • 29.5mm x 15.0mm x 8.0mm
Operating Temperature
  • 0°C to +70°C
Compatibility
  • Linux
  • Mac OSX
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Weight
  • 3.33g +/- 0.25g tolerance (25.70g in retail pack)
Compliance
  • CCATS-ECCN
  • Reach
  • RoHS
  • WEEE
Certifications
  • Paraguay - Conatel
  • URCA - Bahamas
  • Anatel - Brazil
  • CE-Europe-RED
  • CITC - Saudi Arabia
  • DWLFM - Bahrain
  • EAC - Russia
  • Enacom - Argentina
  • FCC - United States
  • IC - Canada
  • ICASA - South Africa
  • IDMA - Singapore
  • KCC - Korea
  • MoC - India
  • MOC - Israel
  • Morocco
  • NBTC - Thailand
  • NCC - Taiwan
  • RCM - Australia - New Zealand
  • SRRC - China
  • SUTEL - Costa Rica
  • Telec - Japan

Documentation

User Guides

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’LM808 User Manual’ tags=”]

[/av_toggle]

[av_toggle title=’LM808 Windows Quick Start Guide’ tags=”]

[/av_toggle]

[av_toggle title=’LM808 macOS Quick Start Guide’ tags=”]

[/av_toggle]

[av_toggle title=’LM808 Troubleshooting Guide v1.1′ tags=”]

[/av_toggle]

[/av_toggle_container]

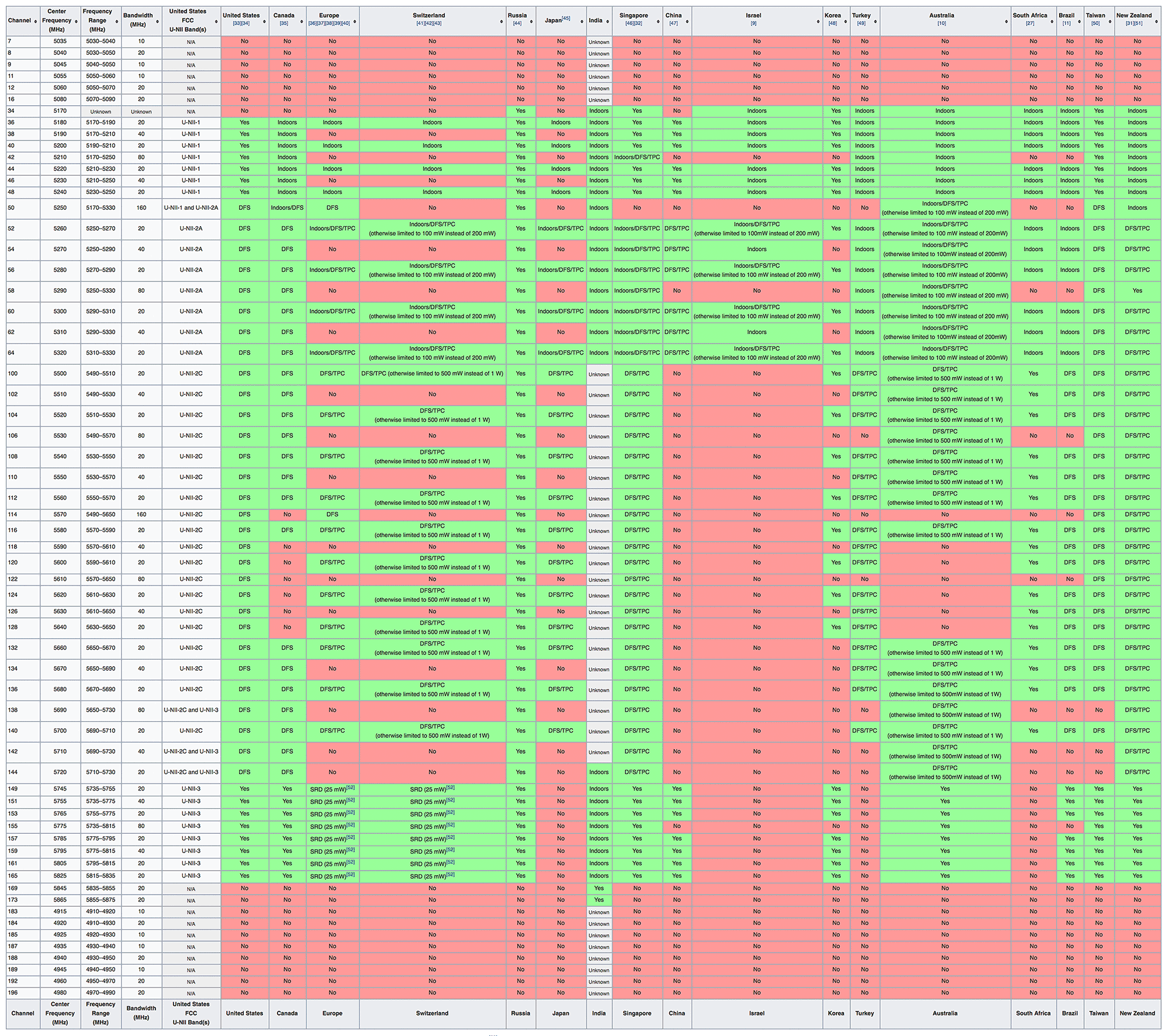

WiFi Radio Band List by Country

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’WiFi Radio Band List by Country’ tags=”]

[/av_toggle]
[/av_toggle_container]

SAFETY PRECAUTIONS

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Safety Precautions Card – English’ tags=”]

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Safety Precautions Card – German’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Spanish’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – French’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Italian’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Dutch’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Russian’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container][av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Chinese’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

* For any other product documentation please Contact Us

https://bit.ly/3qRs5uT

Related products

  • Read more
    Add to wishlist

    WiFi USB Adapter 300Mbps – LM809

    £100.00

    WiFi USB Adapter 300Mbps – LM809 is a WiFi 802.11n adapter, which fully supports the features and functional compliance of IEEE 802.11 n, b,g, standards. It supports up to 300Mbps high-speed wireless network connections.

    [av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM809_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    [av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    Read more
    Add to wishlist
    Compare
    More Info
  • Read more
    Add to wishlist

    Bluetooth® Module Class 1 – LM072

    £100.00

    Bluetooth® Module Class 1 – LM072 is a an integrated module which runs LM’s own tried and tested Bluetooth® v2.1 or Bluetooth® v2.0 CSR Stack Firmware. With an 18dBm output from the RF terminal this powerful Bluetooth® Class 1 Module will cover distances beyond 100m when coupled with a well-tuned antenna circuit.

    [av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM072_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    [av_button label=’Development Kit’ link=’manually,https://www.lm-technologies.comproduct/bluetooth-spp-development-kit-lm555/’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    [av_button label=’Firmware’ link=’manually,https://wiki.lm-technologies.com/lm048-lm058-lm072-bt2-0-2-1-classic-firmware-release/’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    [av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    Read more
    Add to wishlist
    Compare
    More Info
  • Read more
    Add to wishlist

    Bluetooth® v4.0 Dual Mode Long Range USB Adapter – LM1010

    £100.00

    Bluetooth® v4.0 Dual Mode Long Range USB Adapter – designed for long range communication with both Bluetooth (v1.0 – v3.0) and Bluetooth low energy devices . It operates in HCI mode with excellent compatibility with Linux, Windows and macOS.

    [av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM1010_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    [av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    Read more
    Add to wishlist
    Compare
    More Info
  • Read more
    Add to wishlist

    WiFi 802.11ac / Bluetooth® 5.0 2T2R USB Combi Adapter – LM842

    £100.00

    The LM842 USB Adapter (Dongle) complies with Bluetooth® 5.0 (Dual Mode) and IEEE 802.11ac WiFi Standards of operation.

    Using a fully integrated single-chip that supports 2-stream 802.11ac solutions with Multi-user MIMO (Multiple-Input, Multiple-Output)

    [av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM842_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    [av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    Read more
    Add to wishlist
    Compare
    More Info
  • Read more
    Add to wishlist

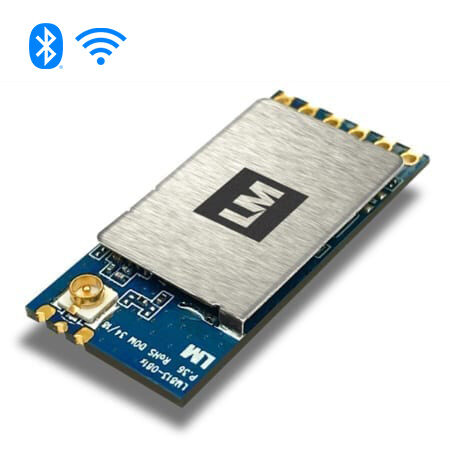

    WiFi and Bluetooth® v4.2 Dual Mode USB Module – LM812

    WiFi and Bluetooth® USB Module v4.0 Dual Mode Class 1 – LM812 is a combination of WiFi 802.11n and Bluetooth® v4.2 standards. The LM812 module supports IEEE 802.11b/g/n/e/i and Bluetooth® v2.0, v2.1, v3.0, v4.0 and v4.2 standards.

    [av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM812_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    [av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

    Read more
    Add to wishlist
    Compare
    More Info
  • Read more
    Add to wishlist

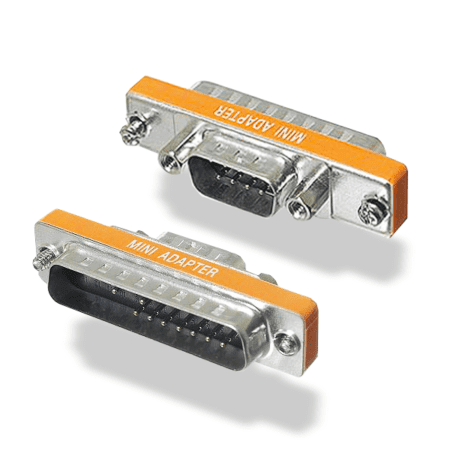

    RS232 9 Pin Serial Gender Changer – LM036
