RP SMA Dual Band 2.4GHz and 5.8GHz Antenna – LM256

£100.00

The LM256 is an high performance, efficient, omnidirectional antenna in a compact form factor.
The antenna is tuned to operate on 2.4GHz and 5GHz networks.

Available: Out of stock

  • Tech Spec

    Additional Information

    Frequency

    2.4 GHz and 5 GHz

    Antenna

    SMA Connector

    Antenna dBi

    3 dBi, 2 dBi

    Operating Temperature
    • -40°C to +80°C
    Technology

    Bluetooth®, WiFi

    Dimensions
    • 8mm x 109mm
    Weight
    • 10g +/- 0.25g tolerance
    Compliance
    • Reach
    • RoHS
    • WEEE
  • Description

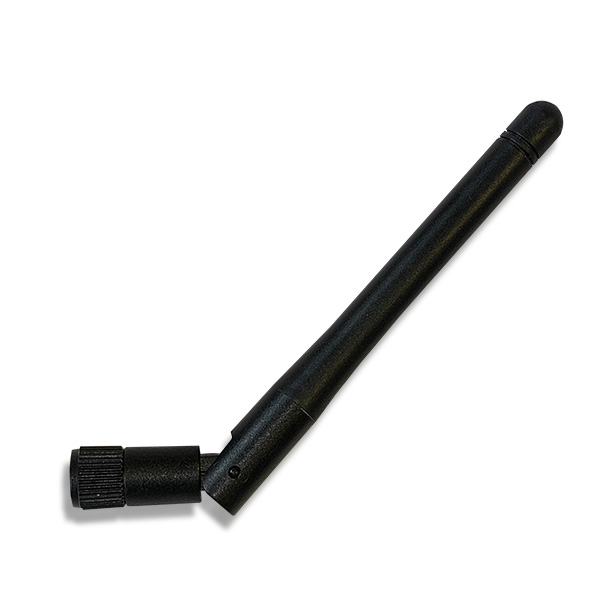

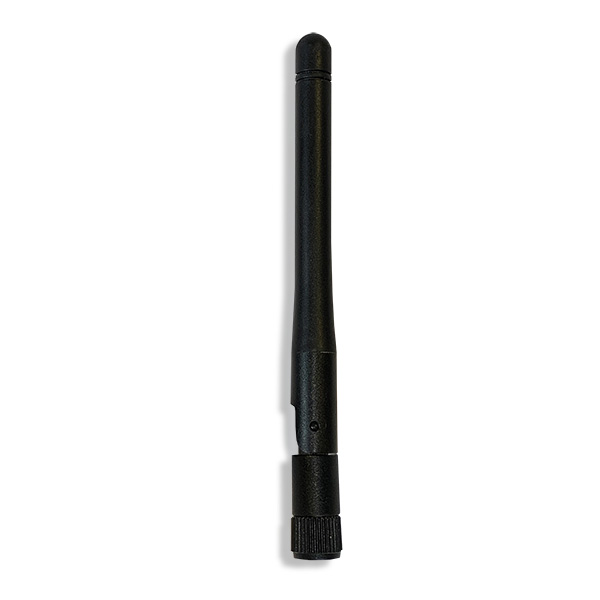

    The dual band design makes it ideal for high speed 802.11ac applications such as wireless access points and routers, and the latest LM Technologies products such as the LM842 USB adapter and the LM843 module. The LM256 has a 0–90-degree fixed hinge and a floating SMA that allows for 360-degree swivel rotation. It mounts directly onto RP-SMA female connectors.
  • Features

    • IEEE 802.11ac, 802.11a, 802.11b, 802.11g and 802.11n
      access points and routers
    • 2.4 GHz ISM, 5.8 GHz UNII / ISM band applications
    • WiFi applications
    • Bluetooth® applications
    • Ideal for LM products such as the LM813, LM842, LM843
    • RoHS, REACH and WEEE Compliant Solution
