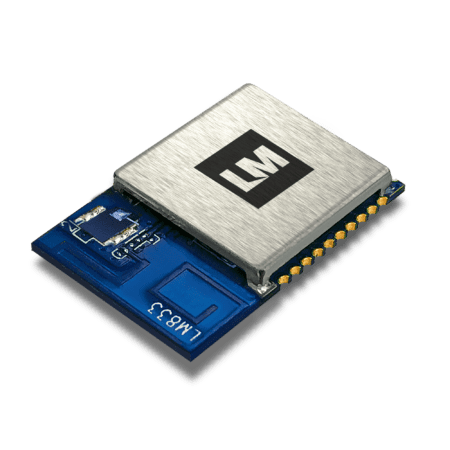

WiFi 802.11n / Bluetooth® 5.2 Combi Module – LM833
£100.00
The LM833 module incorporates an intelligent coexistance mechanism for WiFi 802.11 b/g/n via SDIO and Dual Mode Bluetooth® v5.2
via UART. This is ideal for significantly minimising the BoM cost and PCB space. The LM833 adds updated Bluetooth capabilities, WPA3, DPP for Wi-Fi Easy Connect, enhanced Soft AP and shared SDIO host interface for Wi-Fi + Bluetooth.
[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.com/lm_downloads/LM833_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]
[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]
Available: Out of stock
-
Tech Spec
Additional Information
Important Notes - THIS PRODUCT IS COMING SOON
Wireless Standard Backward Compatibility Frequency 2.4 GHz
Module Type - Host Controller Interface (HCI)
Interfaces - SDIO
- UART
Antenna IPEX Receptical, PCB Antenna
Dimensions - 19mm x 12mm x 2mm
Operating Temperature - -20°C to +60°C
Bluetooth Technology Dual Mode, Bluetooth Classic, Bluetooth Low Energy (LE)
Compatibility Compliance Technology Bluetooth®, WiFi
-
Description
This versatile module combines WiFi and Bluetooth® radios, plus an ARM Cortex-M3 microcontroller. The LM833 utilises a powerful Infineon chipset which enables the LM833 HCI Module to be compatible with the latest Android / Linux platforms. It’s SMT side and bottom pads allow for easy manufacture and placement within your product. -
Features
- WiFi 802.11 b/g/n
- Bluetooth® v5.2 specification (Dual Mode)
- SDIO v2.0 for WiFi and Bluetooth®
- High Speed UART also available for Bluetooth®
- IPEX Connector or PCB Antenna options
- Full speed Bluetooth® Piconet and ScatterNet supported
- Enterprise level security – WPA/WPA2/WPA3 certification for WiFi
- SoftAP (Up to 4 clients)
- 1T1R
- DPP (Device Provisional Protocol) for WiFi Easy Connect™
- Support sophisticated WiF i/ BT coexistence mechanism to
- enhance collection performance
- Supports Bluetooth adaptive power management mechanism
- 19mm x 12mm x 2mm
- SMT Side and Bottom Pads for easy production
- See our website for this products certifications.
- RoHS, REACH and WEEE
Case Studies
UKCA Update December 2022
The UK Government will continue to recognise the CE product marking until 31 December 2024 The UK Conformity Assessed (UKCA) marking has been introduced as part of the UK’s own robust regulatory…
Resources
Access all the information for our products - some documentation my require an account to access.
This versatile module combines WiFi and Bluetooth® radios, plus an ARM Cortex-M3 microcontroller.
The LM833 utilises a powerful Infineon chipset which enables the LM833 HCI Module to be compatible with the latest Android / Linux platforms.
It’s SMT side and bottom pads allow for easy manufacture and placement within your product.
Additional information
| Important Notes |
|
|---|---|
| Wireless Standard | |
| Backward Compatibility | |
| Frequency | 2.4 GHz |
| Module Type |
|
| Interfaces |
|
| Antenna | IPEX Receptical, PCB Antenna |
| Dimensions |
|
| Operating Temperature |
|
| Bluetooth Technology | Dual Mode, Bluetooth Classic, Bluetooth Low Energy (LE) |
| Compatibility | |
| Compliance | |
| Technology | Bluetooth®, WiFi |
