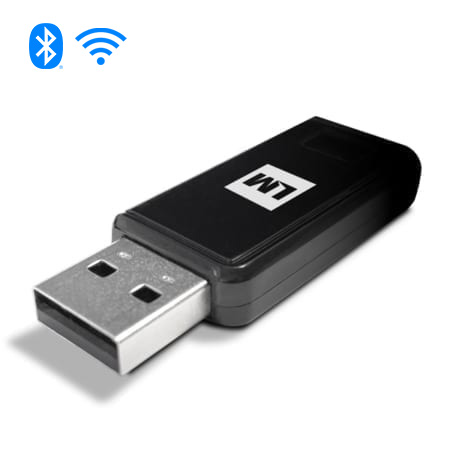

WiFi and Bluetooth® v4.0 USB Dual Mode Adapter – LM817

£100.00

LM817 provides a complete solution for a wireless coexistence applications which require high throughput and quality performance for WiFi and Bluetooth® connections.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM817_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’See EOL Notice’ link=’https://www.lm-technologies.comeol-end-life-product-notice/’ link_target=” size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’custom’ custom_bg=’#94051f’ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

Add to wishlist

  • Tech Spec

    Additional Information

    Wireless Standard
    • BT 4.0
    • 802.11n
    Backward Compatibility
    • Bluetooth 3.0
    • Bluetooth 2.1
    • Bluetooth 2.0
    • 802.11b
    • 802.11g
    Frequency

    2.4 GHz
    Adapter Type

    Host Controller Interface (HCI)
    Interfaces
    • USB
    Antenna

    IC Antenna
    Dimensions
    • 49.6mm x 18mm x 7.4mm
    Weight
    • 5.38g +/- 0.25g tolerance
    Operating Temperature
    • 0°C to +50°C
    Bluetooth Technology

    Bluetooth Classic, Bluetooth Low Energy (LE)
    Compatibility
    • Android
    • iBeacon
    • Linux
    • Windows 10
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • Bluetooth SIG - UK
    • CE-Europe-RED
    • FCC - United States
    • IC - Canada

  • Description

    The Dual Mode LM817 WiFi & Bluetooth® HCI Combination USB Adapter offers coexistence for Bluetooth® and WiFi operations. Simultaneously exchanging data when connected to independent applications, via its USB interface to host system. Compliant to; IEEE 802.11b/g/n/d/e/h/i standards, Bluetooth® v2.1 + EDR, v3.0 and v4.0 (Dual Mode) standards. It supports WiFi up-to 150Mbps via 1T1R RF output and can support Bluetooth® Link Manager, Link Layer and Low Energy Link Layer.

  • Features

    • 1T1R, Supporting 150Mbps Bandwidth
    • Support for the IEEE 802.11 b/g/n/d/e/h/i standards
    • Enterprise level security – WPA/WPA2
    • Bluetooth® v2.1 + EDR Class 1 – up to 3Mbps
    • Supports Qualified Bluetooth® v3.0
    • Supports Qualified Bluetooth® v4.0 Dual Mode (v2.0, v2.1 and low energy)
    • Support Bluetooth® adaptive power management mechanism Full speed Bluetooth® Piconet and Scatternet supported

Case Studies

Lead Times Update 22 Sep 2022

For new orders, due to extended lead times from our chip vendors/suppliers, we are experiencing delays for key components used in LM products which are impacting the normal production cycle.…

Read more

Resources

Access all the information for our products - some documentation my require an account  to access.

Certification >

Datasheets >

User Guides >

Drivers >

Images >

Talk to us...

It’s what makes us stand out against our competitors, we are the experts, real people that can assist you – not just resellers.

BOOK AN APPOINTMENT

Keep informed...

Alerts for EOL, PCN and products updates

ALERTS

Drivers

LM817 RTL8723BU Windows 10, 8.1, 8, 7 Drivers (Bluetooth & WiFi)

LM817_SOFT_WIN_DRIVER _BT_WIFI_USB.zip

LM817 RTL8723BU Windows 10, 8.1, 8, 7, Vista Drivers (WiFi)

LM817_SOFT_WIN_DRIVER _WIFI_ONLY.zip

LM817 RTL8723BU Windows 10, 8.1, 8, 7 Drivers (Bluetooth)

LM817_SOFT_WINDOWS_BLUETOOTH_DRIVER_0518.2016.zip

LM817 RTL8723BU Windows 10, 8.1, 8, 7 Drivers (WiFi)

LM817_SOFT_WINDOWS_WIFI_DRIVER_0901.2016.zip

LM817 RTL8723BU Windows 10 Driver

LM817_WINDOWS_10_DRIVER_1030_12_0526_2016.zip

LM817 RTL8723BU Windows XP Driver (Bluetooth & WiFi)

LM817_WINXP_WiFi_BT_DRIVER_RTL8723BU.zip



LM817 RTL8723BU Android v4.4 Driver (Bluetooth)

LM817_20160607_BT_ANDROID_v4.4_USB_COEX_8723B.zip

LM817 RTL8723BU Android v6.x Driver (Bluetooth)

LM817_20160825_BT_ANDROID_v6.x_COEX_8723BU.zip

LM817 RTL8723BU Android Linux v4.3.16 Driver (Bluetooth & WiFi)

LM817_SOFT_WIFI_BT_ANDROID_LINUXv4.3.16_RTL8723BU.zip

LM817 RTL8723BU Android Linux v4.3.6 (Bluetooth & WiFi)

LM817_SOFT_WIFI_BT_ANDROID_LINUXv4.3.6_RTL8723BU.zip



LM817 RTL8723BU Linux v5.8.4 (Bluetooth & WiFi)

LM817_WIFI_BT_LINUX_v5.8.4_RTL8723BU.zip

LM817 RTL8723BU Linux v4.4.5 (Bluetooth & WiFi)

LM817_WIFI_BT_LINUX_v4.4.5_RTL8723BU.zip

LM817 RTL8723BU Linux v4.4.2 (Bluetooth & WiFi)

LM817_SOFT_WIFI_BT_LINUX_v4.4.2_COEX_RTL8723BU.zip

Certifications

Verify LM817 Bluetooth® SIG Certification
Bluetooth SIG Certified [ Verify our SIG certification of LM817 ]

OTHER DECLARATIONS

ECCN / CCATS

The Dual Mode LM817 WiFi & Bluetooth® HCI Combination USB Adapter offers coexistence for Bluetooth® and WiFi operations.

Simultaneously exchanging data when connected to independent applications, via its USB interface to host system.

Compliant to; IEEE 802.11b/g/n/d/e/h/i standards, Bluetooth® v2.1 + EDR, v3.0 and v4.0 (Dual Mode) standards. It supports WiFi up-to 150Mbps via 1T1R RF output and can support Bluetooth® Link Manager, Link Layer and Low Energy Link Layer.

Additional information

Wireless Standard
  • BT 4.0
  • 802.11n
Backward Compatibility
  • Bluetooth 3.0
  • Bluetooth 2.1
  • Bluetooth 2.0
  • 802.11b
  • 802.11g
Frequency

2.4 GHz
Adapter Type

Host Controller Interface (HCI)
Interfaces
  • USB
Antenna

IC Antenna
Dimensions
  • 49.6mm x 18mm x 7.4mm
Weight
  • 5.38g +/- 0.25g tolerance
Operating Temperature
  • 0°C to +50°C
Bluetooth Technology

Bluetooth Classic, Bluetooth Low Energy (LE)
Compatibility
  • Android
  • iBeacon
  • Linux
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Compliance
  • CCATS-ECCN
  • Reach
  • RoHS
  • WEEE
Certifications
  • Bluetooth SIG - UK
  • CE-Europe-RED
  • FCC - United States
  • IC - Canada

Documentation

USER GUIDE

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Ubuntu User Guide’ tags=”]

[/av_toggle]
[/av_toggle_container]

SAFETY PRECAUTIONS

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Safety Precautions Card – English’ tags=”]

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]
[av_toggle title=’Safety Precautions Card – German’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Spanish’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – French’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Italian’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Dutch’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

[av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Russian’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container][av_toggle_container initial=’0′ mode=’accordion’ sort=”]

[av_toggle title=’Safety Precautions Card – Chinese’ tags=”]

Safety Precautions Card

[/av_toggle]
[/av_toggle_container]

* For any other product documentation please Contact Us

https://bit.ly/2IIlWA5

Related products

  • Read more
    Add to wishlist

    Bluetooth® 5.0 Dual Mode Module – LM074

    £100.00

    Standalone (With Embedded Bluetooth® 5.0 Stack). The LM074 Bluetooth® Dual Mode module is a powerful, flexible and versatile solution, allowing your embedded system to wirelessly communicate with other nearby Bluetooth® enabled devices (e.g. iOS and Android)

    Read more
    Add to wishlist
    Compare
    More Info
  • Read more
    Add to wishlist

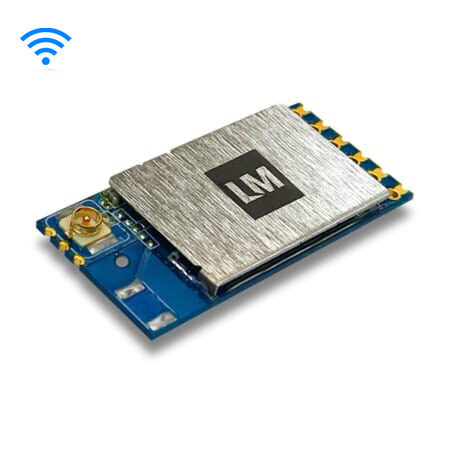

    WiFi Module 802.11 b/g/n with IC Antenna – LM822
