Bluetooth® Serial Adapter Class 1 Long Range – LM058

£100.00

Bluetooth® Serial Adapter Class 1 Long Range – LM058 has a minimum range of 100m when used with its 2dBi external antenna. 5, 7 and 9dBi antennas are also available and offer greater distances often in excess of 800m and only limited by the environment. The RS232 Serial Adapter uses a CSR IC and our own AT Command firmware enables connections with other Bluetooth® devices over SPP profile, in either Bluetooth® v2.1 or v2.0 standards.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM058_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Firmware’ link=’manually,https://wiki.lm-technologies.com/lm048-lm058-lm072-bt2-0-2-1-classic-firmware-release/’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

  • Tech Spec

    Additional Information

    Wireless Standard
    • BT 2.1
    Backward Compatibility
    • Bluetooth 2.0
    Frequency

    2.4 GHz

    Adapter Type

    Programmable (Configurable with AT Commands)

    Profiles

    SPP

    Interfaces
    • Serial (RS232)
    Antenna

    SMA Connector

    Compatible Antennas

    LM255 1.5dBi, LM251 2dBi, LM252 5dBi, LM253 7dBi, LM254 9dBi

    Tx Output Power
    • 18dBm (Maximum)
    Rx Sensitivity
    • -86dBm (Typical)

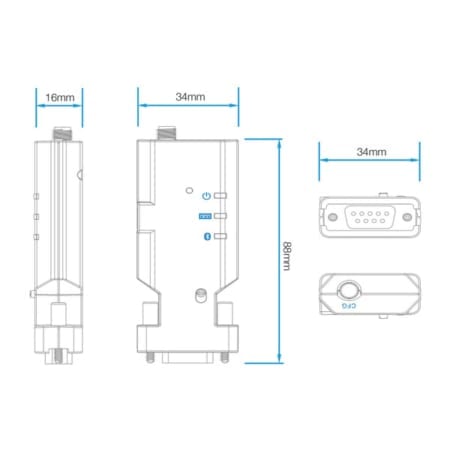

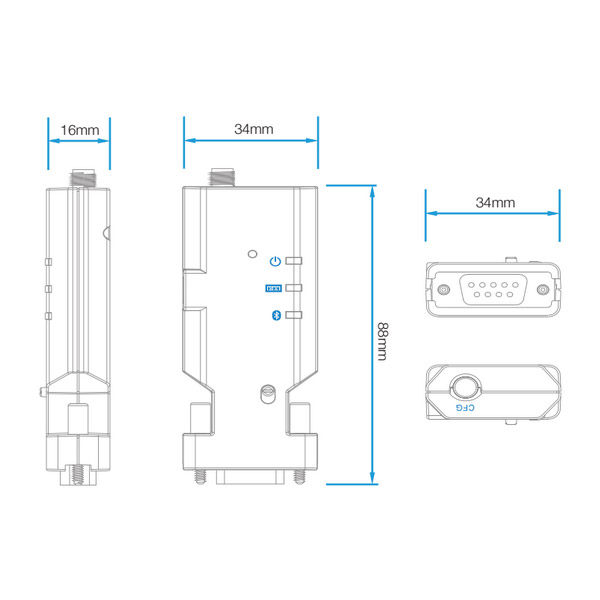

    Dimensions
    • 88mm x 34mm x 16mm (without SMA Connector)
    Weight
    • 36.62g +/- 0.25g tolerance
    Operating Temperature
    • -10°C to +70°C
    Compatibility
    • Windows CE6
    • Windows CE7
    • Android
    • Linux
    • Raspberry Pi
    • Windows 10
    • Windows 10 IoT Core
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • Anatel - Brazil
    • Bluetooth SIG - UK
    • CE - Europe-RTTE
    • FCC - United States
  • Description

    The LM058 Bluetooth® Serial Adapter has a minimum range of 100m when used with its 2 dBi external antenna, 5 dBi, 7 dBi and 9 dBi antennas are also available providing greater distances only limited by the environment, often in excess of 800m. The LM058 uses a CSR IC and our own AT Command firmware, enabling connections with other Bluetooth® devices over SPP profile in either Bluetooth® v2.1 or Bluetooth® v2.0 standards. By controlling the firmware LM Technologies have developed a range of solutions across a wide range of industries such as; POS/EPOS, Automotive, Weighing, Automation and Telematics. We have also built smart phone applications with Android and Blackberry OS, that work seamlessly with our Bluetooth® serial adapters. We offer a free development service for customers purchasing a minimum amount per annum. The LM058 Bluetooth® Serial Adapter SMA Antenna uses our LM149 configuration software which allows users to adjust all of the serial settings such as flow control, stop bits etc. It enables users to name the adapter or turn on or off Bluetooth® functions such as Auto Connect or Bluetooth® discoverable features, or 7 Bit Data. The LM058 Bluetooth® Adapter accepts between 4v and 13v power, either directly to its 9th Pin or via its mini USB main power socket and has proven useful within a wide range of industries. With such a varied amount of existing solutions, the LM058 is a fast introduction to wireless connectivity and very versatile.

    Bluetooth® Serial Adapter Class 1 Long Range - LM058 Certification.

    Current certifications are FCC, R&TTE CE, Anatel SIG and EMC Certifications.

    Bluetooth® LM058 Serial Printing.

    The POS/EPOS industry have been using our Bluetooth® Serial Adapters combined with LM Firmware to enable wireless printing, LM helped this market by gaining approval from receipt printer manufacturers such as: Star Micronics, Epson, SNBC, Orient, Toshiba and Sharp. We have also developed specific solutions within the automotive industry and the adapter is currently being used with radar detection applications.

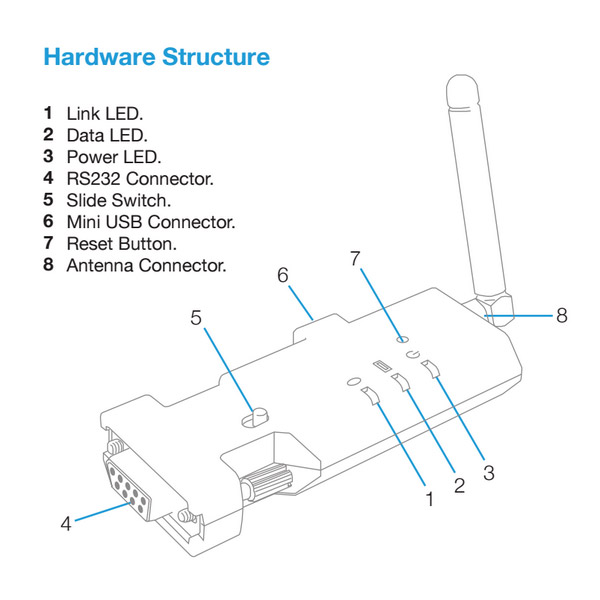

  • Features

    • The LM058 can communicate with another Bluetooth® serial adapter or Bluetooth® devices such as laptops, desktops, PDA’s or mobile phones.
    • Supports Bluetooth® Serial Port Profile (SPP) and Bluetooth® Generic Access Profile (GAP).
    • CSR Bluecore 4 chipset.
    • 100m (329 feet) range with standard 2 dBi Antenna.
    • Alternative antenna’s enable a range up to 1000m.
    • Multiple power supply options, AC Mains via Mini USB, USB-Mini USB.
    • No mains power cable is needed as the adapter can also be powered from the RS232 Pin 9.
    • Unique Patented Firmware enabling Serial Printer functionality.
    • Ability to transfer DTR, DSR, RTS and CTS line status over the air, providing a true Serial Cable replacement solution. This functionality allows serial printers using DSR or CTS line for error reporting, to report errors such as “Out of Paper” or “Printer Offline”.
    • DTR DSR Handshaking and RTS CTS Flow Control options available, depending on the configuration.

Case Studies

Lead Times Update 22 Sep 2022

For new orders, due to extended lead times from our chip vendors/suppliers, we are experiencing delays for key components used in LM products which are impacting the normal production cycle.…

Resources

Access all the information for our products - some documentation my require an account  to access.

Talk to us...

It’s what makes us stand out against our competitors, we are the experts, real people that can assist you – not just resellers.

Keep informed...

Alerts for EOL, PCN and products updates

Please download the correct version of the Configuration Tool below



Notes
• Download the required file, unzip and run the enclosed exe.
• To avoid conflicts, do not download and run both versions.
• See our support article, if you need help finding your firmware number.

Finding your firmware number



Bluetooth 2.1 Firmware

  • FW 6.20
  • FW 6.19 (Optional)

Bluetooth 2.0 Firmware

  • FW 6.64
  • FW 6.62 (Optional)
  • FW 6.61 (Optional)

See our wiki for Application Firmware Release Overview

Certifications

Bluetooth SIG Certified [ Verify our SIG certification of LM058 ]

OTHER DECLARATIONS

ECCN / CCATS

The LM058 Bluetooth® Serial Adapter has a minimum range of 100m when used with its 2 dBi external antenna, 5 dBi, 7 dBi and 9 dBi antennas are also available providing greater distances only limited by the environment, often in excess of 800m.

The LM058 uses a CSR IC and our own AT Command firmware, enabling connections with other Bluetooth® devices over SPP profile in either Bluetooth® v2.1 or Bluetooth® v2.0 standards.

By controlling the firmware LM Technologies have developed a range of solutions across a wide range of industries such as; POS/EPOS, Automotive, Weighing, Automation and Telematics. We have also built smart phone applications with Android and Blackberry OS, that work seamlessly with our Bluetooth® serial adapters.

We offer a free development service for customers purchasing a minimum amount per annum.

The LM058 Bluetooth® Serial Adapter SMA Antenna uses our LM149 configuration software which allows users to adjust all of the serial settings such as flow control, stop bits etc. It enables users to name the adapter or turn on or off Bluetooth® functions such as Auto Connect or Bluetooth® discoverable features, or 7 Bit Data.

The LM058 Bluetooth® Adapter accepts between 4v and 13v power, either directly to its 9th Pin or via its mini USB main power socket and has proven useful within a wide range of industries.

With such a varied amount of existing solutions, the LM058 is a fast introduction to wireless connectivity and very versatile.

Bluetooth® Serial Adapter Class 1 Long Range – LM058 Certification.

Current certifications are FCC, R&TTE CE, Anatel SIG and EMC Certifications.

Bluetooth® LM058 Serial Printing.

The POS/EPOS industry have been using our Bluetooth® Serial Adapters combined with LM Firmware to enable wireless printing, LM helped this market by gaining approval from receipt printer manufacturers such as: Star Micronics, Epson, SNBC, Orient, Toshiba and Sharp.

We have also developed specific solutions within the automotive industry and the adapter is currently being used with radar detection applications.

Additional information

Wireless Standard
  • BT 2.1
Backward Compatibility
  • Bluetooth 2.0
Frequency

2.4 GHz

Adapter Type

Programmable (Configurable with AT Commands)

Profiles

SPP

Interfaces
  • Serial (RS232)
Antenna

SMA Connector

Compatible Antennas

LM255 1.5dBi, LM251 2dBi, LM252 5dBi, LM253 7dBi, LM254 9dBi

Tx Output Power
  • 18dBm (Maximum)
Rx Sensitivity
  • -86dBm (Typical)
Dimensions
  • 88mm x 34mm x 16mm (without SMA Connector)
Weight
  • 36.62g +/- 0.25g tolerance
Operating Temperature
  • -10°C to +70°C
Compatibility
  • Windows CE6
  • Windows CE7
  • Android
  • Linux
  • Raspberry Pi
  • Windows 10
  • Windows 10 IoT Core
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Compliance
  • CCATS-ECCN
  • Reach
  • RoHS
  • WEEE
Certifications
  • Anatel - Brazil
  • Bluetooth SIG - UK
  • CE - Europe-RTTE
  • FCC - United States
