BLUETOOTH 5.0 DUAL MODE GATEWAY – LM3001
-
Tech Spec
Additional Information
Wireless Standard Backward Compatibility Frequency 2.4 GHz to 2.480 GHz
Profiles LE, GATT-Based, HID, SPP
Interfaces - Ethernet USB
- LAN
- Serial (RS232)
Antenna 4 x External SMA Antennas
Tx Output Power - 8.31 dBm (Bluetooth® v2.0, v.2.1) and 7.63 dBm (Bluetooth® v5.0/v4.2)
Rx Sensitivity - TBA dBm (Bluetooth® v2.0, v.2.1) and -TBA dBm (Bluetooth® v5.0/v4.2)
Dimensions - 200mm x 131mm x 31mm**
Weight - 500g**
Operating Temperature - -20°C to +65°C**
Compliance Certifications -
-
Description

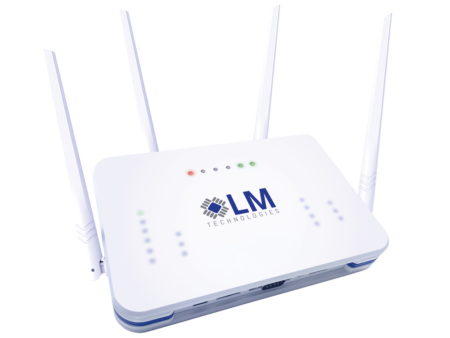

The LM3001 Bluetooth® Industrial gateway is a powerful and versatile solution that allows a variety of Bluetooth devices to be connected to an Ethernet network, enabling high speed internet access. The gateway is a Class 1 device allowing it to maintain connections at long range, using the supplied antennas. The LM3001 can be used in a wide range of applications including asset tracking, building automation and data collection. This makes it suitable for installation in a variety of locations such as warehouses, schools, offices, factories, airports and stadiums. The LM3001 has quad Qualcomm modules combining Bluetooth® Low Energy (LE) and Classic radios using a dual mode Bluetooth 5.0 stack, plus a high-performance micro-processing unit and embedded Linux operating system. The gateway has a selection of customisation options and can be ordered as pictured or in your own custom design and branding. -
Features
-
Bluetooth® 5.0 specification
-
TCP Client / server configurable
-
10M/100M adaptive network
-
Bluetooth® security authentication
-
Frequency range: ISM 2.400 – 2.483GHz
-
Web configuration page for easy setup
-
Bluetooth® profiles: SPP, HID, LE GATT
-
Internet protocols: TCP/IP, HTTP, FTP, ARP, DHCP, PPP
-
Case Studies
Lead Times Update 31 Jan 2024
LM Technologies is continuously liaising with suppliers to reduce any lead times where possible. We have updated lead times for new orders for the following products: LM811 – 8-10 Weeks…
Resources
Access all the information for our products - some documentation my require an account to access.
The LM3001 Bluetooth® Industrial gateway is a powerful and versatile solution that allows a variety of Bluetooth devices to be connected to an Ethernet network, enabling high speed internet access. The gateway is a Class 1 device allowing it to maintain connections at long range, using the supplied antennas.
The LM3001 can be used in a wide range of applications including asset tracking, building automation and data collection. This makes it suitable for installation in a variety of locations such as warehouses, schools, offices, factories, airports and stadiums.
The LM3001 has quad Qualcomm modules combining Bluetooth® Low Energy (LE) and Classic radios using a dual mode Bluetooth 5.0 stack, plus a high-performance micro-processing unit and embedded Linux operating system. The gateway has a selection of customisation options and can be ordered as pictured or in your own custom design and branding.
Additional information
| Wireless Standard | |
|---|---|
| Backward Compatibility | |
| Frequency | 2.4 GHz to 2.480 GHz |
| Profiles | LE, GATT-Based, HID, SPP |
| Interfaces |
|
| Antenna | 4 x External SMA Antennas |
| Tx Output Power |
|
| Rx Sensitivity |
|
| Dimensions |
|
| Weight |
|
| Operating Temperature |
|
| Compliance | |
| Certifications | |
