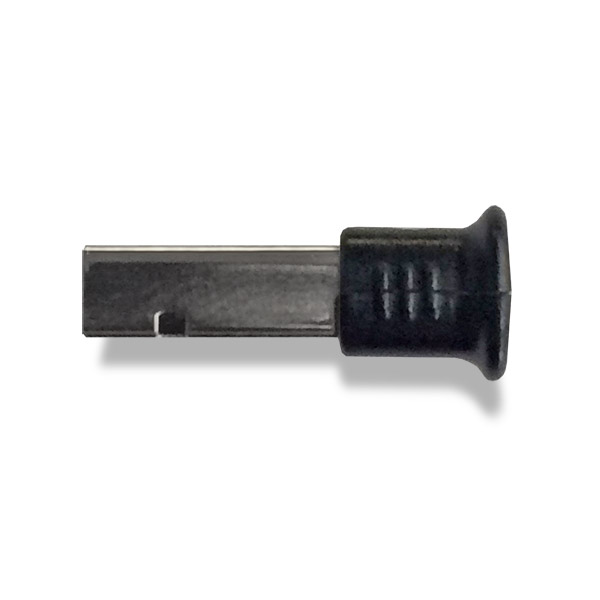

Bluetooth® v4.0 Dual Mode Class 2 USB Adapter – LM506

£100.00

Bluetooth® v4.0 Dual Mode USB Adapter – LM506 combines Bluetooth® v2.0, v2.1 and v3.0 + HS standards along with the Bluetooth® v4.0 standard, enabling the adapter to communicate with both traditional Bluetooth® and Bluetooth low energy enabled devices.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM506_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

  • Tech Spec

    Additional Information

    Wireless Standard
    • BT 4.0
    Backward Compatibility
    • Bluetooth 3.0
    • Bluetooth 2.1
    • Bluetooth 2.0
    Frequency

    2.4 GHz

    Adapter Type

    Host Controller Interface (HCI)

    Interfaces
    • USB
    Dimensions

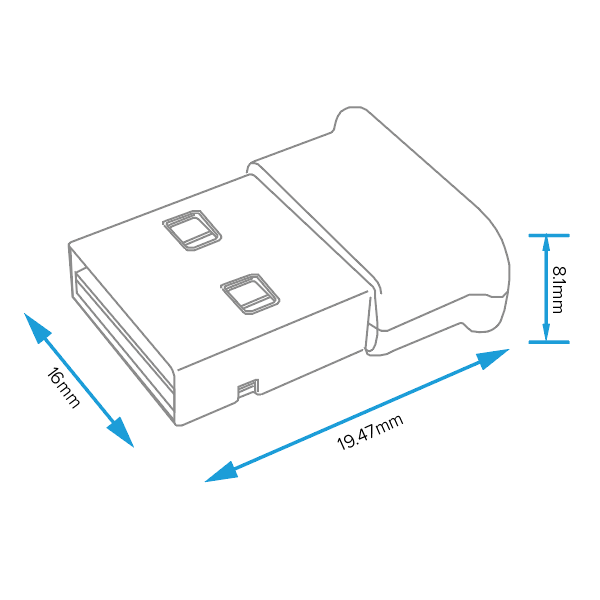

    • 19.47mm x 16mm x 8.1mm
    Weight
    • 1.68g +/- 0.25g tolerance (23.99g in retail pack)
    Operating Temperature
    • -30°C to +85°C
    Tx Output Power
    • 0dBm (Bluetooth® v2.0, v2.1) and 4.7dBm (Bluetooth® Smart)
    Rx Sensitivity
    • -82dBm (Bluetooth® v2.0, v2.1)
    Antenna

    IC Antenna

    Compatibility
    • iBeacon
    • Linux
    • Mac OSX
    • Windows 10
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • Bluetooth SIG - UK
    • CE-Europe-RED
    • EAC - Russia
    • FCC - United States
    • IC - Canada
    • IDMA - Singapore
    • KCC - Korea
    • NCC - Taiwan
    • RCM - Australia - New Zealand
    • SRRC - China
    • Telec - Japan
    • TRA - United Arab Emirates
  • Description

    The LM506 Bluetooth® v4.0 dual mode adapter is a small, simple and highly compatible solution. A plug and play USB adapter, compatible with Linux, macOS and Windows XP to Windows 10 platforms, allowing your host computer to wirelessly communicate with other nearby Bluetooth® v2.0, v2.1 and Bluetooth® v4.1 enabled devices (such as the iPhone and Android devices), providing a low energy connection and high quality data stream. The LM506 has many possible uses e.g. within an iBeacon and a data logger. Typically used in industries such as EPOS, M2M and automotive and is ideal for developing voice and data applications. The adapter has a Host Controller Interface (HCI) for a simple connection via USB to a host computer or MCU. Product: LM506 / E0X34-60126
  • Features

    • USB 2.0 (Full Speed) for data and power source
    • Voice and Data Application support (including VoIP over Bluetooth®)
    • Stereo Audio supported
    • PLC packet loss concealment
    • Beacon compatible
    • Plug and Play (OSX, Linux and Windows XP – 10 compatible)
    • EOL (End of Life) expected to be 10 years +
