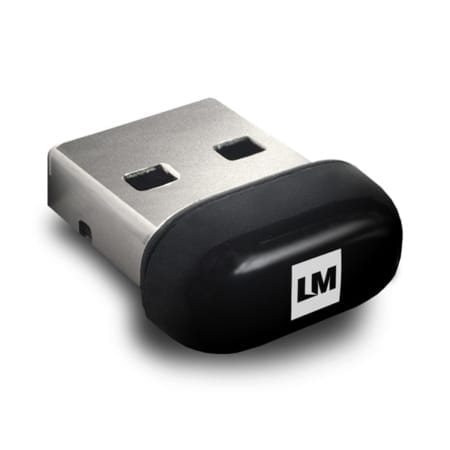

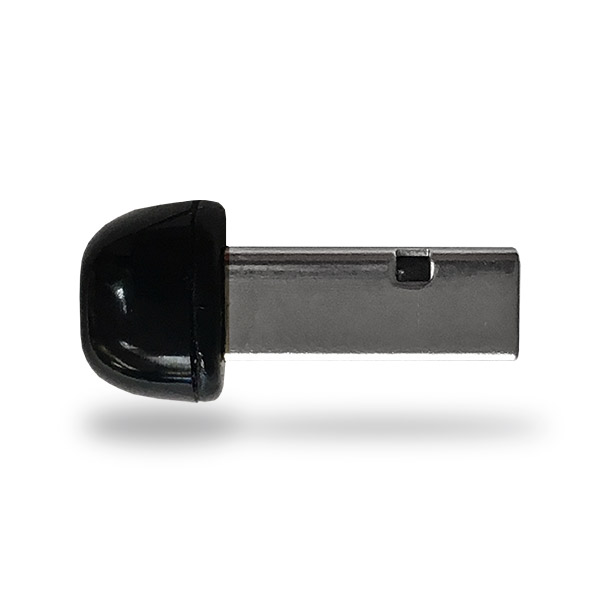

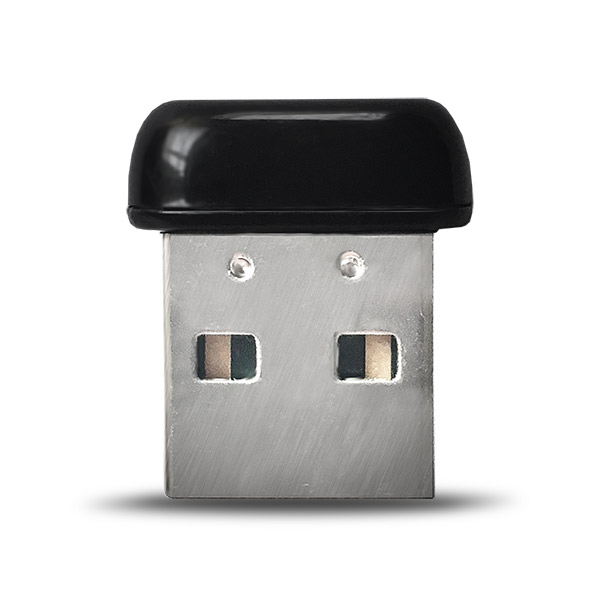

WiFi USB Nano Adapter 150Mbps – LM816

£100.00

The LM816 Wireless adapter by LM Technologies, is a WiFi 802.11n dongle which fully supports the features and functional compliance of IEEE 802.11n,b,g,e and i standards. It supports up to 150Mbps high-speed wireless network connections.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM816_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

  • Tech Spec

    Additional Information

    Wireless Standard
    • 802.11n
    Backward Compatibility
    • 802.11b
    • 802.11g
    Frequency

    2.4 GHz

    Adapter Type

    Host Controller Interface (HCI)

    Interfaces
    • USB
    Antenna

    IC Antenna

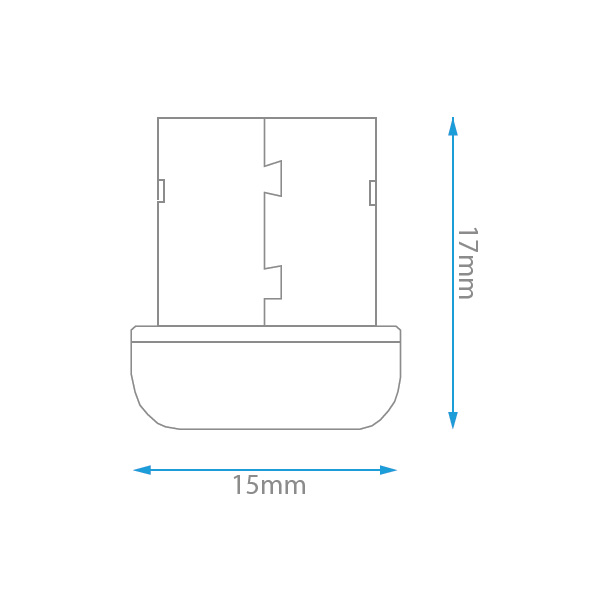

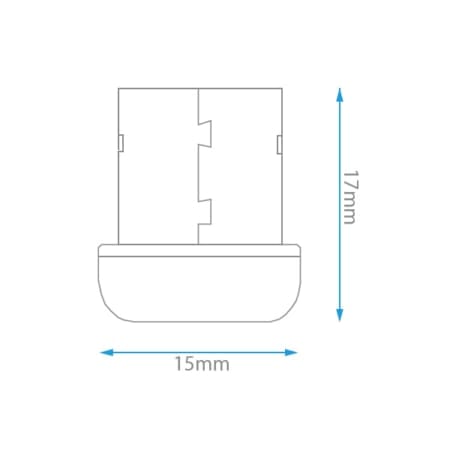

    Dimensions
    • 17mm x 15mm x 8mm
    Weight
    • 1.80g +/- 0.25g tolerance (25.36g in retail pack)
    Operating Temperature
    • -10°C to +60°C
    Compatibility
    • Windows CE6
    • Windows CE7
    • Linux
    • Mac OSX
    • Windows 10
    • Windows 10 IoT Core
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • Anatel - Brazil
    • CE - Europe-RTTE
    • FCC - United States
    • IC - Canada
    • Telec - Japan
  • Description

    WiFi USB Nano Adapter 150Mbps - LM816

    The LM816 adapter is designed to provide excellent performance with minimum power consumption and enhance the advantages of a robust system while being cost-effective. It is competitive with superior performance, with better power management applications. Reference ID ADT, 802.11n, USB, 150Mbps, 5v Realtek 8188EUS, Nano, IC-ANT, AO. Chipset RTL8188EUS.
  • Features

    • 1T 1R, Supporting 150Mbps Bandwidth
    • Support for the IEEE 802.11 b/g/n/e/i standards
    • Operates in 2.4 GHz frequency bands
    • 1×1 MIMO technology improves effective throughput and range over existing 802.11 b/g products
    • Data rates: up to 150Mbps
    • 802.11e-compatible bursting and I standards
    • BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes
    • WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes
    • Small Size: 17mm x 15mm x 8mm

Case Studies

Lead Times Update 22 Sep 2022

For new orders, due to extended lead times from our chip vendors/suppliers, we are experiencing delays for key components used in LM products which are impacting the normal production cycle.…

Resources

Access all the information for our products - some documentation my require an account  to access.

Talk to us...

It’s what makes us stand out against our competitors, we are the experts, real people that can assist you – not just resellers.

Keep informed...

Alerts for EOL, PCN and products updates

Drivers

LM816 RTL8188EUS Windows 10, 8.1, 8, 7, Vista Drivers

LM816_RTL8188EUS_WINDOWS_DRIVERS.zip

LM816 RTL8188EUS Windows CE6 and Windows CE7 Drivers (ARM)

LM816_RTL88EUS_WINCE6_WINCE7.zip



LM816 macOS El Capitan Driver (10.11)

LM816_OSX10.11_WIFI_DRIVER_2.3.11 2.zip

LM816 macOS El Capitan Driver (with Menu)

LM816_OSX10.11_WIFI_DRIVER_WITH_MENU_FEB2016.zip



LM816 RTL8188EUS Linux v5.2.2.3 Driver

LM816_SOFT_RTL8188EUS_LINUX_V5.2.2.3.zip

LM816 RTL8188EUS Linux v4.3.24 Driver

LM816_RTL8188EUS_LINUX_v4.3.24_16705.20160512.zip



Certifications

OTHER DECLARATIONS

ECCN / CCATS

WiFi USB Nano Adapter 150Mbps – LM816

The LM816 adapter is designed to provide excellent performance with minimum power consumption and enhance the advantages of a robust system while being cost-effective. It is competitive with superior performance, with better power management applications.

Reference ID

ADT, 802.11n, USB, 150Mbps, 5v Realtek 8188EUS, Nano, IC-ANT, AO. Chipset RTL8188EUS.

Additional information

Wireless Standard
  • 802.11n
Backward Compatibility
  • 802.11b
  • 802.11g
Frequency

2.4 GHz

Adapter Type

Host Controller Interface (HCI)

Interfaces
  • USB
Antenna

IC Antenna

Dimensions
  • 17mm x 15mm x 8mm
Weight
  • 1.80g +/- 0.25g tolerance (25.36g in retail pack)
Operating Temperature
  • -10°C to +60°C
Compatibility
  • Windows CE6
  • Windows CE7
  • Linux
  • Mac OSX
  • Windows 10
  • Windows 10 IoT Core
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Compliance
  • CCATS-ECCN
  • Reach
  • RoHS
  • WEEE
Certifications
  • Anatel - Brazil
  • CE - Europe-RTTE
  • FCC - United States
  • IC - Canada
  • Telec - Japan

Documentation
