WiFi USB Adapter 150Mbps – LM007

£100.00

The LM007 USB adapter is a convenient plug & play solution that enables wireless communication in ad-hoc or infrastructure mode. It is compatible with WiFi 802.11b, 802.11g or 802.11n compliant devices such as routers, access points or wireless adapters.

[av_button label=’Datasheet’ link=’manually,https://www.lm-technologies.comlm_downloads/LM007_DATASHEET.pdf’ link_target=’_blank’ size=’small’ position=’left’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

[av_button label=’Where to Buy’ link=’page,471′ link_target=” size=’small’ position=’right’ icon_select=’yes-right-icon’ icon_hover=’aviaTBicon_hover’ icon=’ue832′ font=’entypo-fontello’ color=’dark’ custom_bg=’#444444′ custom_font=’#ffffff’]

Available: Out of stock

  • Tech Spec

    Additional Information

    Wireless Standard
    • 802.11n
    Backward Compatibility
    • 802.11b
    • 802.11g
    Frequency

    2.4 GHz

    Adapter Type

    Host Controller Interface (HCI)

    Interfaces
    • USB
    Antenna

    IC Antenna

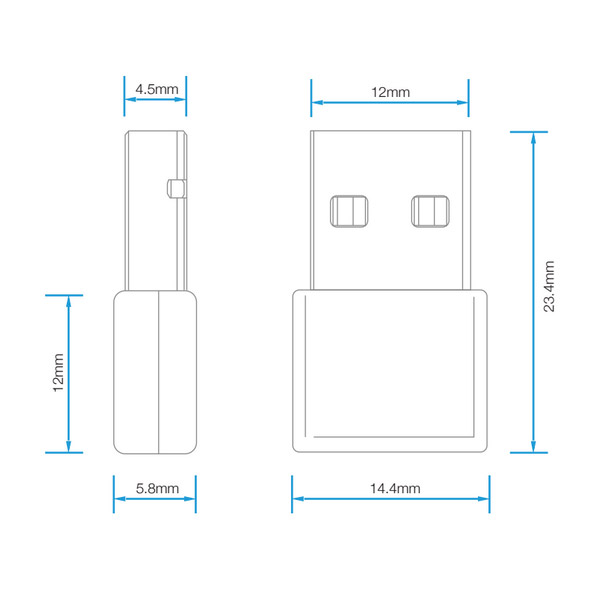

    Dimensions
    • 23.44mm x 14.40mm x 5.80mm
    Weight
    • 2.21g +/- 0.25g tolerance (27.78g in retail pack)
    Operating Temperature
    • -20°C to +85°C
    Compatibility
    • Windows CE6
    • Windows CE7
    • Linux
    • Mac OSX
    • Windows 10
    • Windows 10 IoT Core
    • Windows 7
    • Windows 8
    • Windows Vista
    • Windows XP
    Compliance
    • CCATS-ECCN
    • Reach
    • RoHS
    • WEEE
    Certifications
    • CE-Europe-RED
    • FCC - United States
    • SRRC - China
  • Description

    The LM007 USB adapter is a convenient plug & play solution that enables wireless communication in ad-hoc or infrastructure mode. It is compatible with WiFi 802.11b, 802.11g or 802.11n compliant devices such as routers, access points or wireless adapters. Typically used to form a wireless LAN or for wireless access to the internet with a data transfer rates of up to 150 Mbps. This cost effective adapter is designed for low power consumption, while maintaining excellent RF performance.
  • Features

    • WiFi 802.11 b/g/n
    • Operates in 2.4 GHz Frequency bands
    • Plug and Play (Linux, macOS X, Windows 10 Iot Core, Windows XP to 10 and Windows Compact Embedded 6/7 compatible))
    • Up to 150Mbps Data Transfer Rate 1×1 SISO technology improves effective throughput and range over existing
    • 802.11 b/g products 802.11e-compatible bursting and I standards
    • BPSK, QPSK, 16 QAM and 64 QAM modulation schemes
    • WEP, TKIP, and AES, WPA and WPA2 encryption schemes
    • Fully-featured software utility for easy configuration and management
    • Can be setup as an ad-hoc network for peer to peer communication
    • Small convenient size

Case Studies

Lead Times Update 22 Sep 2022

For new orders, due to extended lead times from our chip vendors/suppliers, we are experiencing delays for key components used in LM products which are impacting the normal production cycle.…

Resources

Access all the information for our products - some documentation my require an account  to access.

Talk to us...

It’s what makes us stand out against our competitors, we are the experts, real people that can assist you – not just resellers.

Keep informed...

Alerts for EOL, PCN and products updates

Drivers

LM007 RTL8188EUS Windows 10, 8, 8.1, 7, Vista Drivers

LM007_SOFT_RTL8188EUS_WINDOWS_DRIVERS.zip

LM007 RTL8188EUS Windows CE6 and Windows CE7 Drivers (ARM)

LM007_SOFT_RTL8188EUS_WINCE6_WINCE7.zip



LM007 RTL8188EUS macOS Snow Leopard to Lion Drivers (10.6 up to 10.7)

LM007_SOFT_RTL8188EUS_MACOS10.6_TO_MACOS10.7.zip

LM007 RTL8188EUS macOS Mountain Lion Driver (10.8)

LM007_SOFT_RTL8188EUS_MACOS10.8.zip

LM007 RTL8188EUS macOS Mavericks to Yosemite (10.9 up to 10.10)

LM007_SOFT_RTL8188EUS_MACOS10.9_TO_MACOS10.10.zip



LM007 RTL8188EUS Linux Driver v5.2.2.3

LM007_SOFT_RTL8188EUS_LINUX_V5.2.2.3.zip

LM007 RTL8188EUS Linux Driver v4.3.24_16705.20160512

LM007_SOFT_RTL8188EUS_LINUX_V4.3.24_16705.20160512.zip

Certifications

OTHER DECLARATIONS

ECCN / CCATS

The LM007 USB adapter is a convenient plug & play solution that enables wireless communication in ad-hoc or infrastructure mode.

It is compatible with WiFi 802.11b, 802.11g or 802.11n compliant devices such as routers, access points or wireless adapters.

Typically used to form a wireless LAN or for wireless access to the internet with a data transfer rates of up to 150 Mbps.

This cost effective adapter is designed for low power consumption, while maintaining excellent RF performance.

Additional information

Wireless Standard
  • 802.11n
Backward Compatibility
  • 802.11b
  • 802.11g
Frequency

2.4 GHz

Adapter Type

Host Controller Interface (HCI)

Interfaces
  • USB
Antenna

IC Antenna

Dimensions
  • 23.44mm x 14.40mm x 5.80mm
Weight
  • 2.21g +/- 0.25g tolerance (27.78g in retail pack)
Operating Temperature
  • -20°C to +85°C
Compatibility
  • Windows CE6
  • Windows CE7
  • Linux
  • Mac OSX
  • Windows 10
  • Windows 10 IoT Core
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Compliance
  • CCATS-ECCN
  • Reach
  • RoHS
  • WEEE
Certifications
  • CE-Europe-RED
  • FCC - United States
  • SRRC - China
