Mini USB Power Supply – LM153

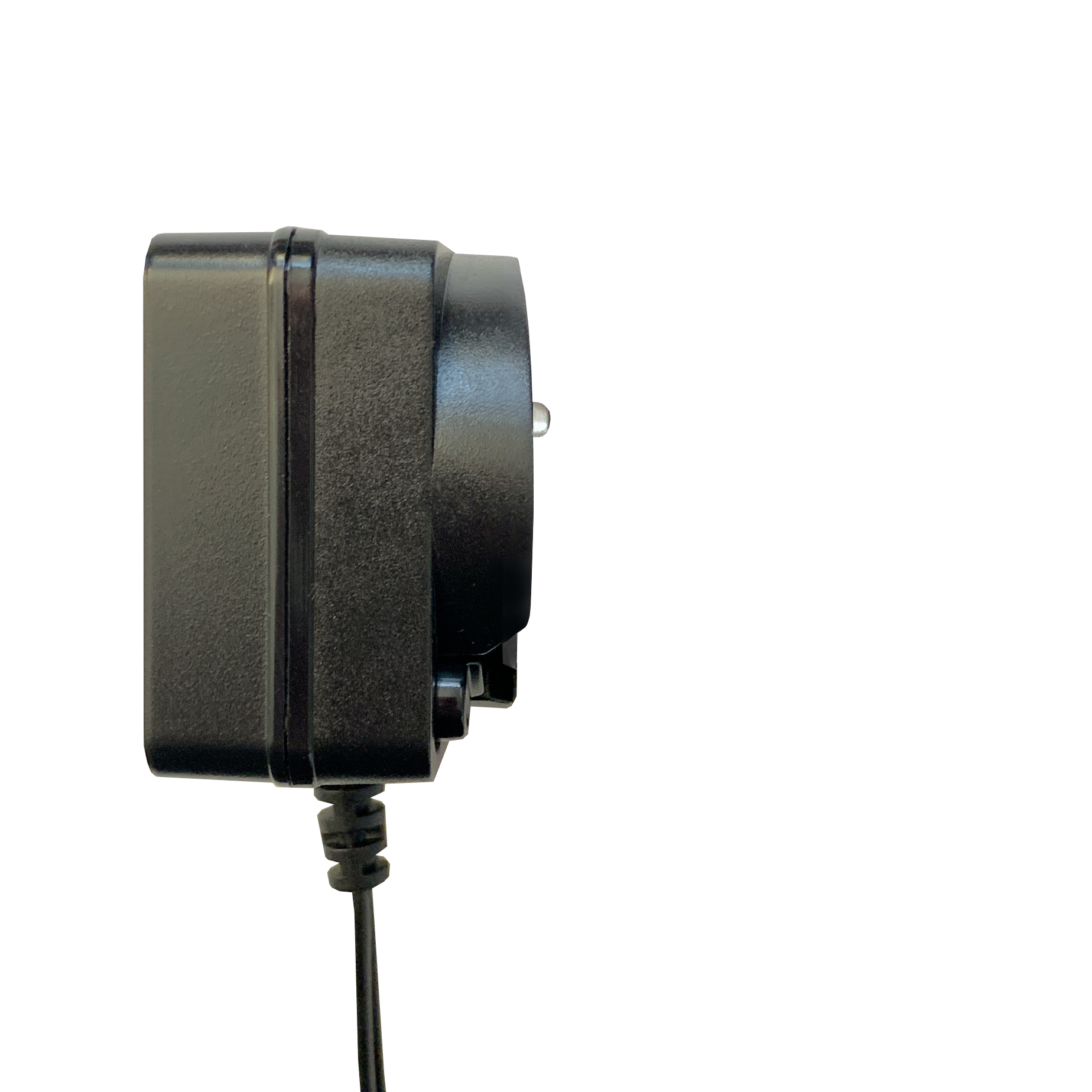

The LM153 has a inter changeable head that allows the face of the plug to be changed.
The Mini USB Power Supply is supplied within the Retail packaged LM048 and LM058 Bluetooth® Serial Adapters. It can also be used with any Mini USB power input sockets, such as the LM556 or LM555 Bluetooth® Development Kits or third party devices that require a 0.5A- 5v Mini USB power supply.
This EU Mini USB power supply has a Mini USB TYBE B connector that is for use with our Bluetooth® Serial Adapters. It may also be used in other generic applications that require a EU Mini USB power supply and is used a charger for many handsets in todays market.

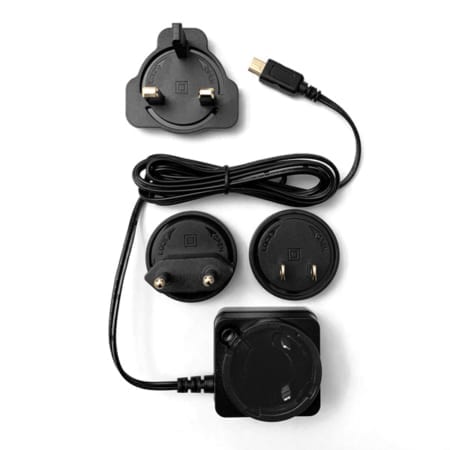

Mini USB Power Supply – LM153 Multi Plug Faces.

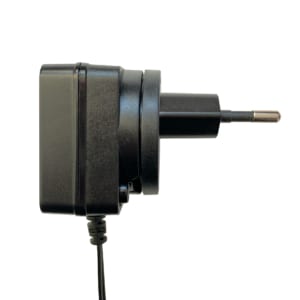

- Face 1 is a Europlug (CEE 7/16) is a non-rewirable flat two-pole domestic AC power plug

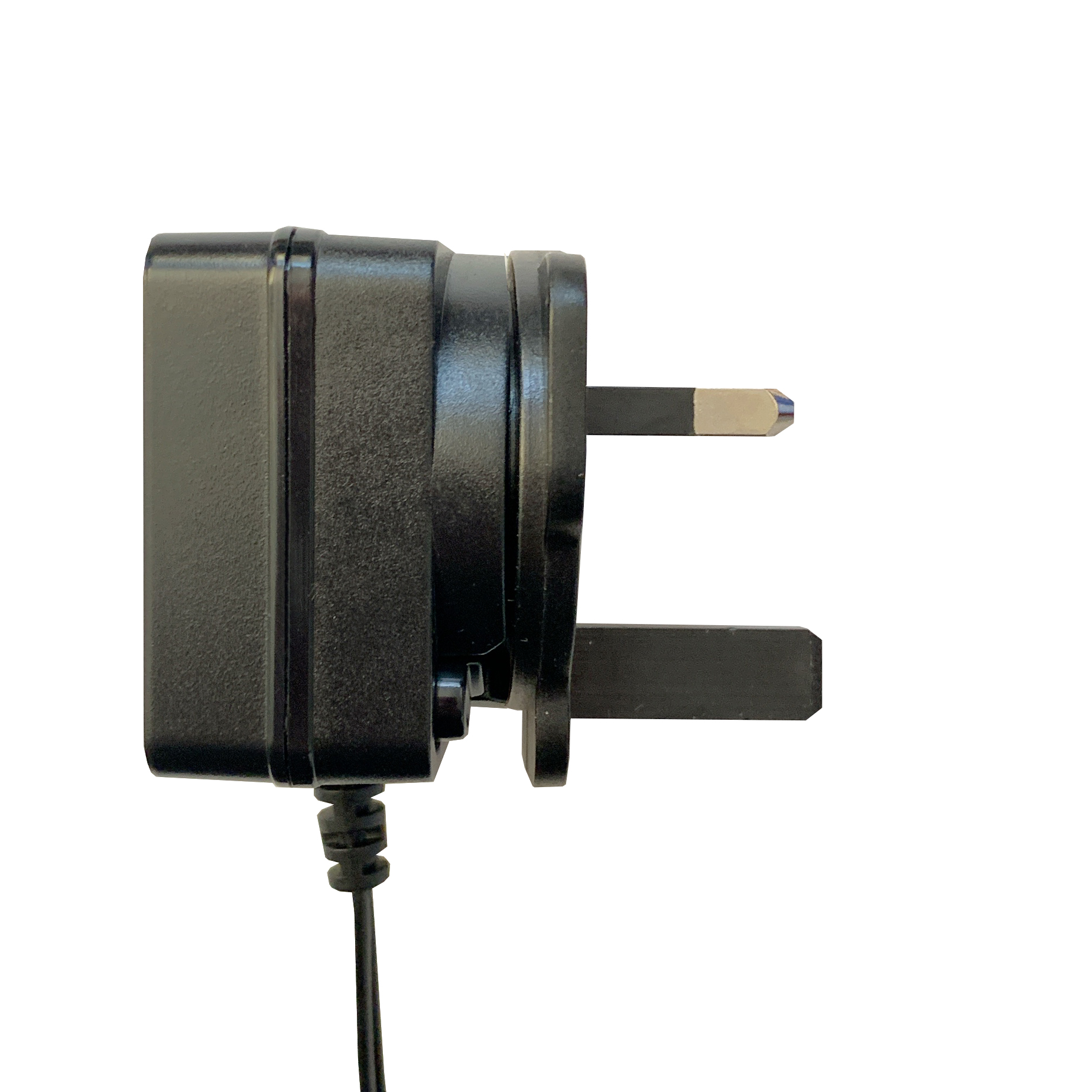

- Face 2 is a UK BS 546 3-pole domestic AC power plug

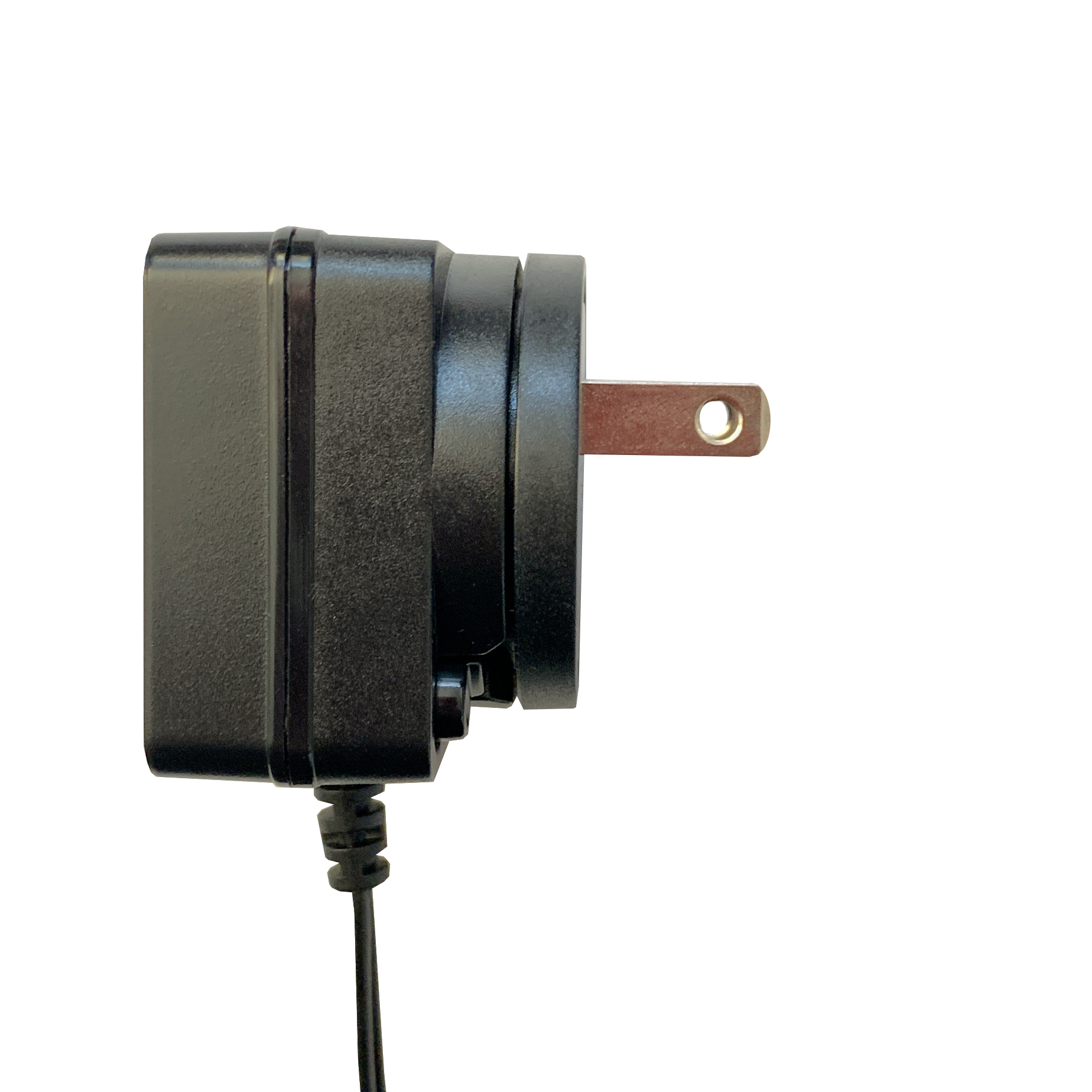

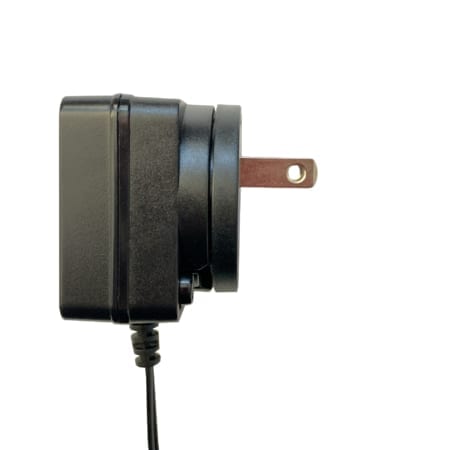

- Face 3 is a US NEMA 2-pole domestic AC power plug
- The plug is designed for voltages from 100v up to 250 V and currents up to 2.5A.
- Once the face is connected to the main body it then has 1.5 meter power cord leading to a Mini USB 2.0 TYPE B connector.
- The Mini USB power supplies a Mini USB 2.0 TYPE B Connector with 5v at 0.5A output.
The cable used to between the connectors is two wire and is designed as USB twisted cable pair, where the “Data +” and “Data −” conductors are twisted together in a double helix. The wires are enclosed in a further layer of shielding.
